Filters, Traps, & Silencers  /  Accessories: Prefilters, Precleaners, Gauges, and More  /  SpinMeister® Precleaners  /
Model #

SM4


$260.00 / each

Please order in case or box quantities.
A $100.00 net minimum order is required. Thank you.

Provided for reference only.

Contact us for more info.


Download 2D Drawing Request 3D Model
  • SM Family

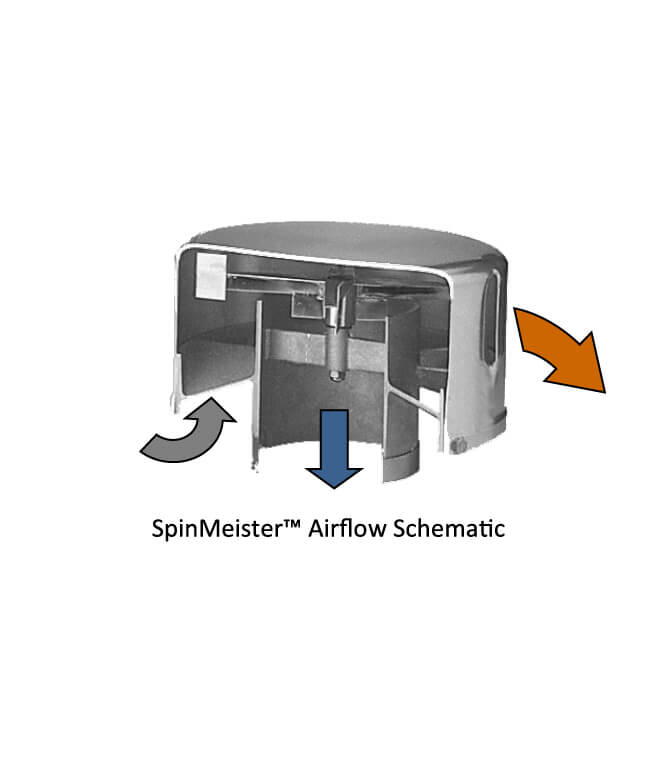

  • SM Precleaner Diagram

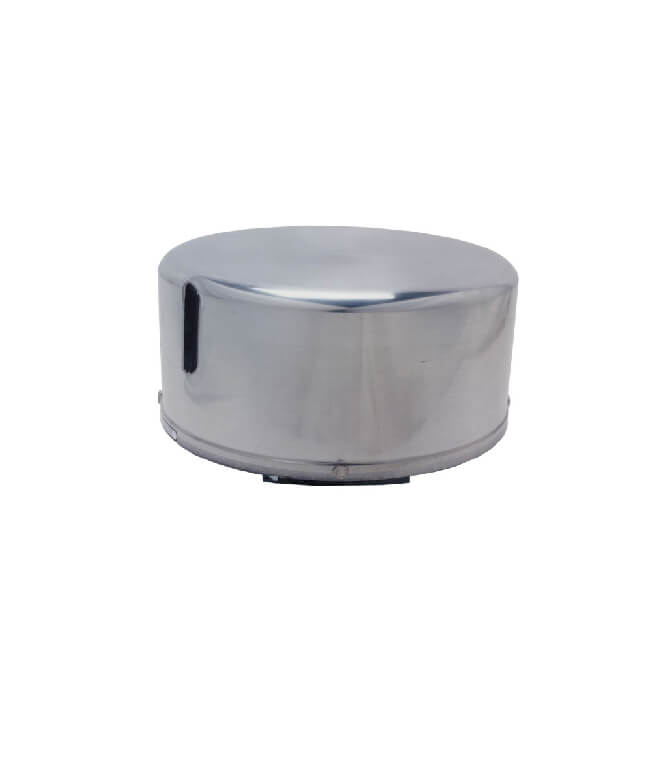

  • SM Precleaner 3

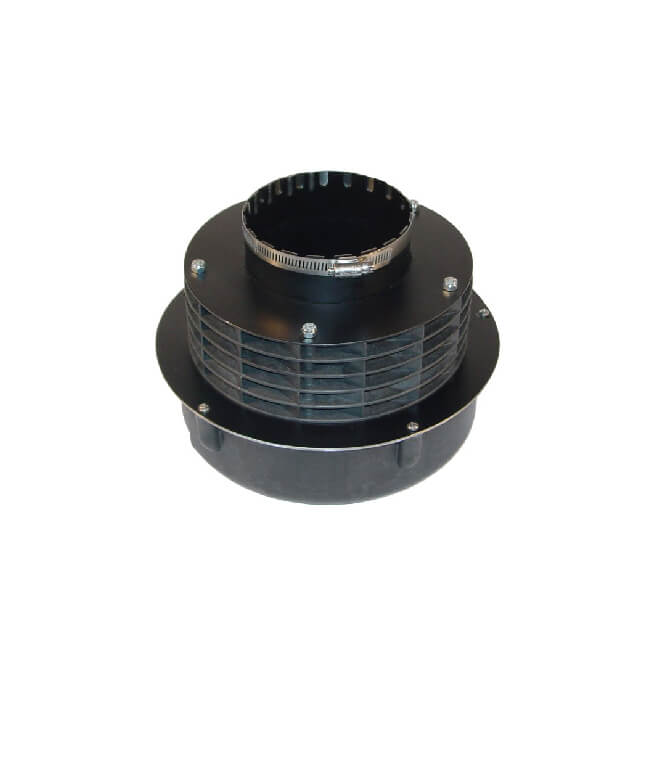

  • SM Precleaner 4
OVERVIEW, DOCUMENTS, AND MORE
LOADING
Units

Specifications

Model
SM4
Height (in.)
5.38
O.D. (in.)
9.38
Flow Range (SCFM)
250 to 400
Quantity per Box
2
Connection Type
Slotted Tube
Description
Spinmeister®, 4"
Finish
Plastic
Fits On
SM4-234P, SM4-235P, SM4(2)-376P, SM4(2)-377P
Case Quantity
4
Model
SM4
Height (mm)
137
O.D. (mm)
238
Flow Range (m3/hr)
425 to 675
Quantity per Box
2
Connection Type
Slotted Tube
Description
Spinmeister®, 4"
Finish
Plastic
Fits On
SM4-234P, SM4-235P, SM4(2)-376P, SM4(2)-377P
Case Quantity
4
  • Overview
  • Product Documents

Features

Technical Specifications

  • Temp (continuous): min -60°F (-51°C) max 250°F (121°C)
  • 85%+ removal efficiency standard to 15 microns
  • Heavy duty vibration resistant stainless steel clamp

Options

Molded SpinMeisters®

  • Molded fiber filled composite housing
  • Plastic rotors
  • May be used with Solberg Inlet SpinMeister® Filter Assemblies

Aluminum SpinMeisters®

  • Polished aluminum housing
  • Stainless steel rotors
  • May be used with Solberg Inlet SpinMeister® Filter Assemblies

SpinMeisters® for Vacuum

  • Low pressure drop design
  • Molded fiber filled composite housing
  • Stainless steel rotors
  • May be used with Solberg Vacuum Filter Series



SpinMeister Precleaners
SpinMeister Precleaners
SpinMeister Precleaners (metric)
SpinMeister Precleaners (metric)
