Model #

SM2-19P-100


$425.00 / each

Please order in case or box quantities.
A $100.00 net minimum order is required. Thank you.

Provided for reference only.

Contact us for more info.


Request 2D Drawing Request 3D Model
  • SpinMeister Family

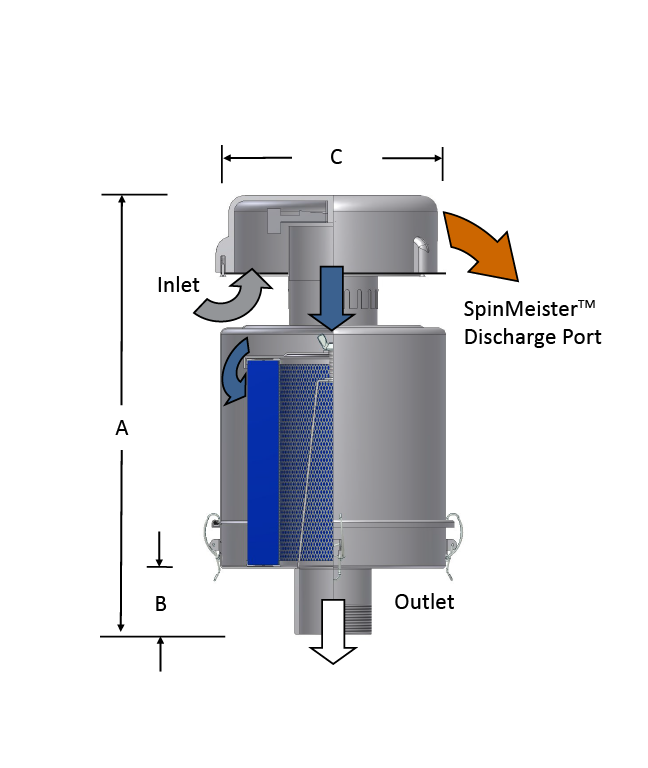

  • SpinMeister Diagram
OVERVIEW, DOCUMENTS, AND MORE
LOADING
Units

Specifications

Model
SM2-19P-100
Outlet Connection Size (in.)
1
Connection Type
MPT
Flow (SCFM)
55
Dim A (in.)
10.63
Dim B (in.)
1.50
Dim C (in.)
7.00
Weight (lbs.)
3.70
Media
Polyester
Micron Rating
5.0
Finish
Black Powder
Quantity per Box
4
Case Quantity
4
Replacement Element
19P
Model
SM2-19P-100
Outlet Connection Size (in.)
1
Connection Type
MPT
Flow (m3/hr)
94
Dim A (mm)
270.00
Dim B (mm)
38.00
Dim C (mm)
178.00
Weight (kg)
1.67
Media
Polyester
Micron Rating
5.0
Finish
Black Powder
Quantity per Box
4
Case Quantity
4
Replacement Element
19P
  • Overview

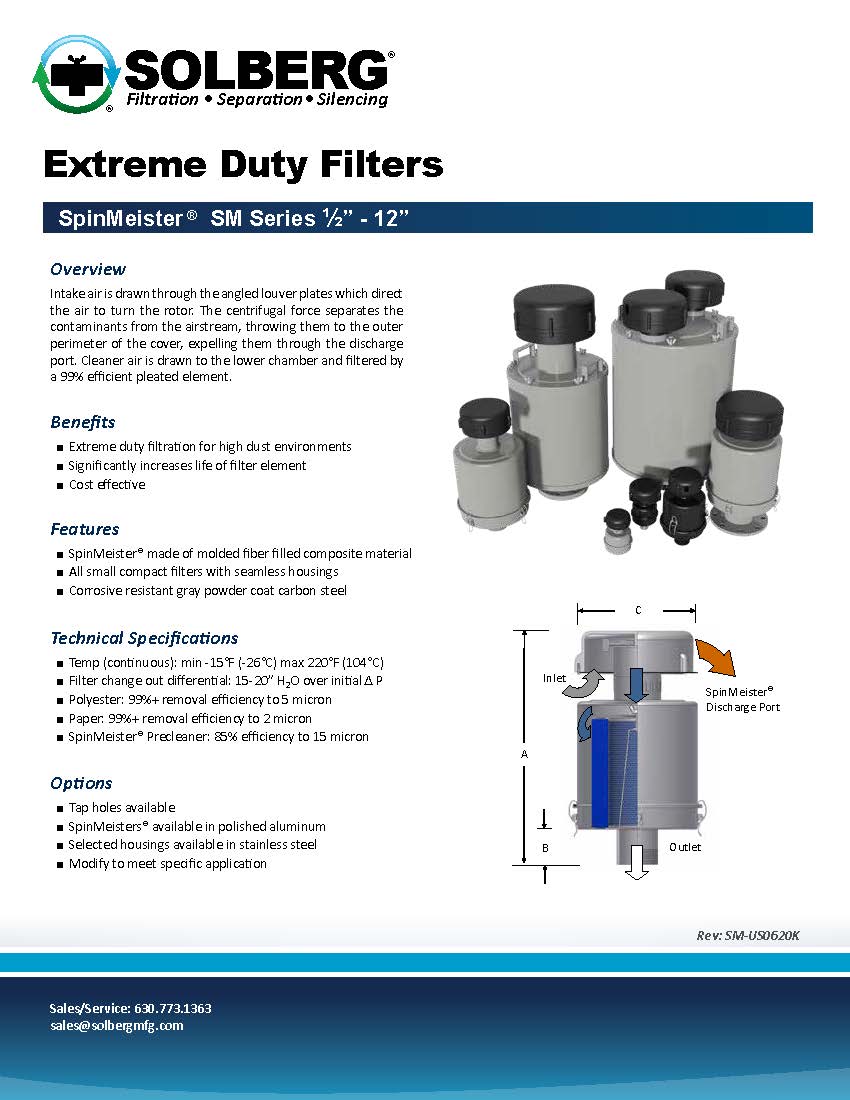

  • Product Documents
  • Alternative Solutions

Features

  • SpinMeister® made of molded fiber filled composite material
  • All small compact filters with seamless housings
  • Corrosive resistant gray powder coat carbon steel
  • Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
  • Filter change out differential: 15-20" H2O (37‐50 mbar) over initial Δ P
  • Polyester: 99%+ removal efficiency to 5 micron
  • Paper: 99%+ removal efficiency to 2 micron
  • SpinMeister® Precleaner: 85% efficiency to 15 micron

Options

  • Tap holes
  • SpinMeisters® available in polished aluminum
  • Selected housings available in stainless steel
  • Modify to meet specific application

Applications

  • Blowers-Regenerative
  • Compressor-Piston
  • Compressor-Screw
  • Construction\Contractor Industry
  • Vacuum Coating
  • Vacuum Pumps & Systems
