Filters, Traps, & Silencers  /  Industrial Silencers for Blowers, Compressors, & Vacuum Pumps  /

BBF Series: Positive Displacement Blower Silencer Frames

Solberg’s industrial silencers will lower your equipment’s noise level. The BBF Series also minimizes the overall size of your blower package, reduces labor requirements, and makes assembly easier.

Solberg’s Blower Discharge Silencer Frames help save space and lower costs by:

  • Maximizing Productivity - Assemble and ship blower packages faster with fewer resources.
  • Reducing Installation Footprint - The integrated discharge silencer and base frame offer a low profile and small footprint.
  • Integrating Smaller Sound Enclosure - The compact design allows you to use significantly smaller and more cost-effective enclosures to help achieve stringent noise level requirements.

Contact us for more information on our Blower Discharge Silencer Series. We are happy to guide you to the right filtration products for your application.

  • BBF Family

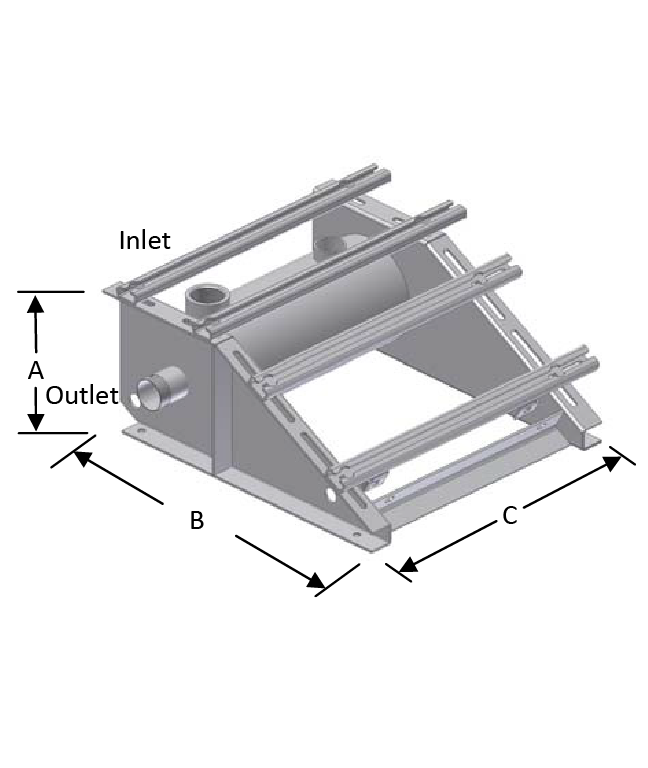

  • BBF Diagram
BBF Family
OVERVIEW, DOCUMENTS, AND MORE
LOADING
Units

Specifications

Model Inlet Connection Size (in.) Outlet Connection Size (in.) Connection Type Flow (SCFM) Dim A (in.) Dim B (in.) Dim C (in.) Dim D (in.) Dim E (in.) Holding Capacity (gal) Media Micron Rating Replacement Element
BBF200 2 2 Pipe Stub | MPT 135 24.00 28.00 11.00 Add To Cart
BBF250 2.5 2.5 Pipe Stub | MPT 195 24.00 28.00 11.00 Add To Cart
BBF300 3 3 Pipe Stub | MPT 300 28.00 35.00 14.00 Add To Cart
BBF400 4 4 Pipe Stub | MPT 520 28.00 35.00 14.00 Add To Cart
BBF600F 6 6 ANSI FLG Pattern 1100 35.00 40.00 18.00 Add To Cart
DL200 Add To Cart
DL300 Add To Cart
DL600 Add To Cart
Model Inlet Connection Size (in.) Outlet Connection Size (in.) Connection Type Flow (m3/hr) Dim A (mm) Dim B (mm) Dim C (mm) Dim D (mm) Dim E (mm) Holding Capacity (L) Media Micron Rating Replacement Element
  • Overview
  • Product Documents
  • Alternative Solutions

Features

  • Reactive style silencing design
  • Integrated discharge silencer
  • Adjustable motor supports for belt tensioning
  • Pre‐assembled rails to frame
  • Corrosive resistant black powder coat carbon steel

Technical Specifications

  • Pressure Rating: 14.7 psig (1 ATM).
  • Hardware kit (SAE std. nuts, bolts, washers) included
  • Ports for relief valve, pressure & temperature gauges

Options

  • Purpose built belt guard
  • Flexible boot kit (clamp, flex adapter)
  • Flange adapters
  • Snubber discharge silencer for vacuum applications
  • Contact factory for best Solberg filter for your package

Applications

  • Blowers - "Roots"
  • Pneumatic Conveying Systems
  • Waste Water Aeration
  • Blowers - PD Type
  • Material Handling Systems
BBF Datasheet
BBF Datasheet
BBF Datasheet (Metric)
BBF Datasheet (Metric)
