Specifications
Model
EFDB-FG9-NW25
Inlet Connection Size (in.)
NW25
Outlet Connection Size (in.)
NW25
Connection Type
ISO Flange
Flow (SCFM)
16

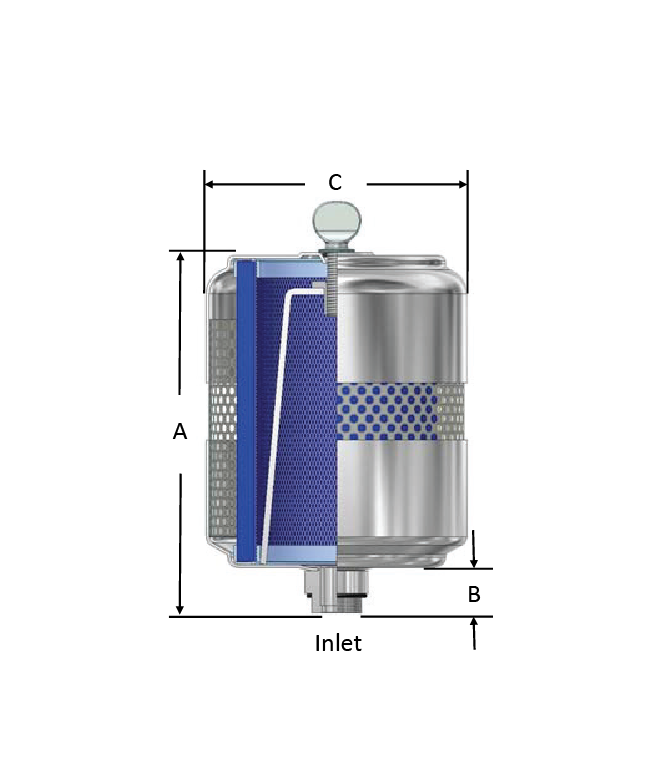

Dim A (in.)
10.04
Dim B (in.)
2.17
Dim C (in.)
5.25
Dim D (in.)
6.02
Dim E (in.)
5
Weight (lbs.)
2.5
Media
Coalescing
Micron Rating
0.3
Finish
Nickel Plated
Quantity per Box
1
Case Quantity
4
Replacement Element
FG9
Model
EFDB-FG9-NW25
Inlet Connection Size (in.)
NW25
Outlet Connection Size (in.)
NW25
Connection Type
ISO Flange
Flow (m3/hr)
27
Dim A (mm)
255
Dim B (mm)
55
Dim C (mm)
133
Dim D (mm)
153
Dim E (mm)
127
Weight (kg)
1.1
Media
Coalescing
Micron Rating
0.3
Finish
Nickel Plated
Quantity per Box
1
Case Quantity
4
Replacement Element
FG9
