Model #

385Y


$819.00 / each

Please order in case or box quantities.
A $100.00 net minimum order is required. Thank you.

Provided for reference only.

Contact us for more info.


Request 2D Drawing Request 3D Model
  • Chemical Resistant Family
  • Standard Element Diagram

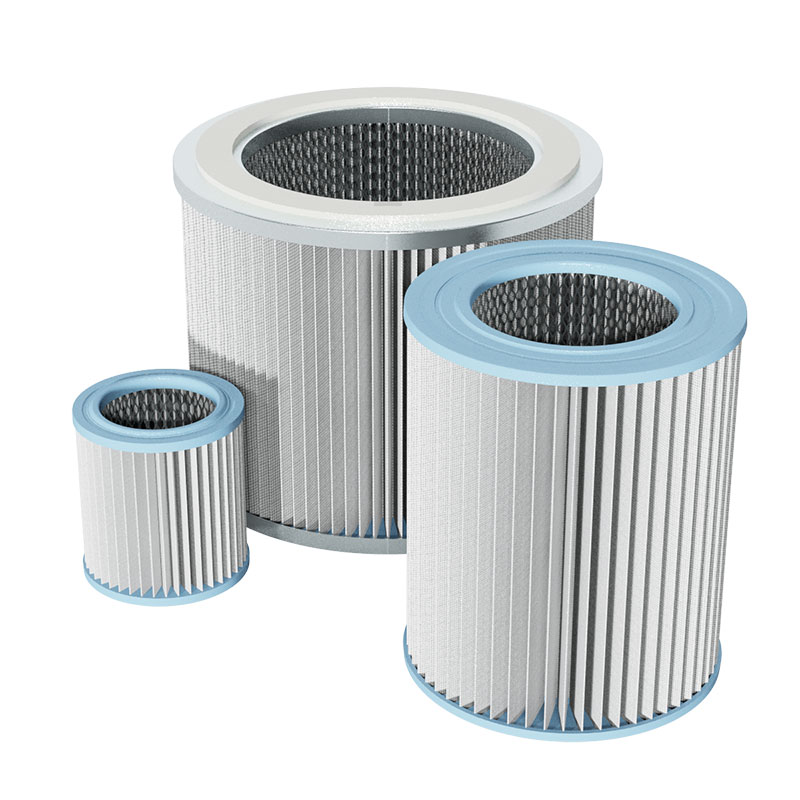

Chemical Resistant Family
OVERVIEW, DOCUMENTS, AND MORE
LOADING
Units

Specifications

Model
385Y
Flow (SCFM)
3300
Media
Polypropylene
Micron Rating
5.0
O.D. (in.)
19.62
I.D. (in.)
14.00
Height (in.)
14.50
Surface Area (sq ft)
50.00
Endcap Style
GN
Quantity per Box
1
Case Quantity
1
Model
385Y
Flow (m3/hr)
5603
Media
Polypropylene
Micron Rating
5.0
O.D. (mm)
498.00
I.D. (mm)
356.00
Height (mm)
368.00
Surface Area (sq m)
4.70
Endcap Style
GN
Quantity per Box
1
Case Quantity
1
  • Overview
  • Product Documents

Features

Y Media

  • Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
  • Filter change out differential: 15 - 20" H2O over initial ΔP
  • 99%+ removal efficiency standard to 5 micron

Options

  • Polyester - 1, 4, 25 & 100 micron
  • HEPA - 99.97% D.O.P. efficiency to 0.3 micron
  • Stainless Steel Nomex: High temperature Nomex cloth - 99+% efficient, reinforced by stainless steel wire mesh & expanded metal
  • Activated carbon

Endcap Styles

  • G = Galvanized metal
  • M = Molded plastisol
  • N = Neoprene blended gasket on open endcaps

Applications

  • Pneumatic Conveying Systems
  • Power Plants
  • Pharmaceutical Industry
