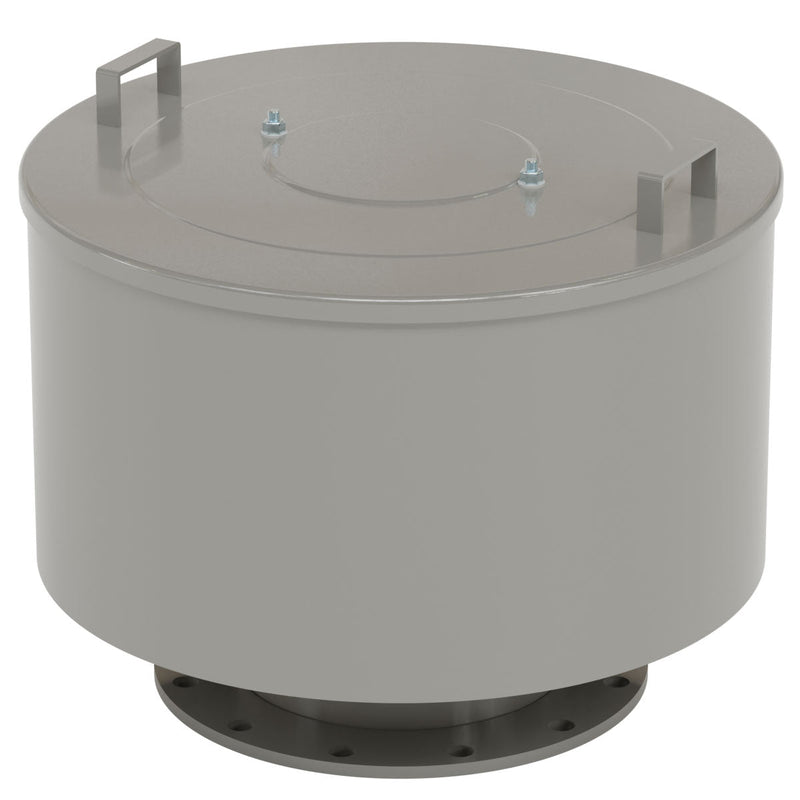

| Model | F-384P-1000F |
| Outlet size | 10 in |
| Connection type | ANSI Pattern |
| Flow (SCFM) | 3300 |
| Dimension a | 23 in |
| Dimension b | 6 in |
| Dimension c | 28,5 in |
| Weight | 130 lb |
| Media | Paper |
| Micron rating | 2.0 |
| Qty per box | 1 |
| Case quantity | 1 |
| Replacement element | 384P™ |
F Series
- Fully drawn weatherhood (1/2 - 6" connections)
- Low entry velocity air gap between base and cover
- Heavy gauge base with low pressure drop outlet pipe and center bracket design
- Corrosive resistant gray powder coat carbon steel
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O (37‐50 mbar) over initial ΔP
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
FT Series
- Exposed element for optimal air flow & low restriction
- Heavy gauge base with low pressure drop outlet pipe and center bracket design
- Corrosive resistant gray powder coat carbon steel
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O (37‐50 mbar) over initial Δ P
- Pressure drop graphs available upon request
- Polyester: 99%+ removal efficiency standard to 5 micron
- Paper: 99%+ removal efficiency standard to 2 micron
Application
- Ash Handling
- Blowers-Side Channel
- Compressor-Piston
- Compressor-Screw
- Construction\Contractor Industry
- Dock Controls
- Envelope Manufacturing
- Hydraulic Breathers - fine filtration
- Pneumatic Conveying Systems
- Sparging
- Waste Water Aeration
- Workshop
- Industrial & Severe Duty
- Blowers - PD Type
Options
- Tap holes
- Pressure drop indicator
- Various media
- Stainless steel construction
- Various finishes and connection styles
