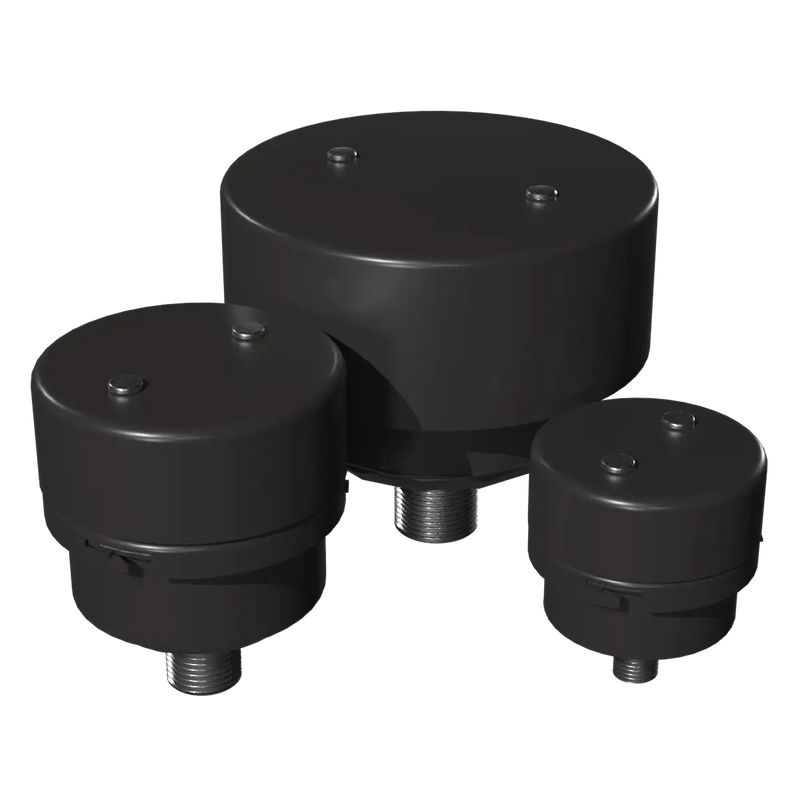

HB Series: Hydraulic Breathers

Solberg’s Breathers are designed to protect hydraulic tanks, lube oil reservoirs, gearboxes and other enclosures that need bidirectional venting. Our line of breathers improve flow dynamics, reduce noise, help maintain fluid purity, and minimize oil migration to the surrounding environment. Keep your system free of contaminates and maximize uptime with Solberg’s Breathers.

HB Series: Hydraulic Breathers

Features

  • Replaceable “hockey puck style” filter element
    • Integrated gasket seal
    • High efficiency polyester media
  • Integrated rain cap and inlet tube design minimizes potential for moisture migration during wash down
  • Corrosive resistant black powder coat carbon steel
  • Weld free
  • Integrated noise silencer

Technical Specifications

  • Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
  • Breather change out differential: 15-20” H2O over initial ΔP
  • Pressure drop graphs available upon request
  • Polyester: 99%+ removal efficency standard to 10 microns

Options

  • High vibration designs
  • Custom connections
  • Equipment specific configurations

Applications

FS Series / F Series

  • Corrosive resistant powder coat carbon steel
  • Heavy gauge base
  • Polyester: 99%+ removal efficency standard to 5 microns
  • Integrated noise silencers (FS Series)
  • Multiple filter media types available
  • Standard connections: 1/2” through 2”

MIN Series

  • Exposed element for low restriction
  • Disposable
  • Polyester: 99%+ removal efficency standard to 5 microns
  • Standard connections: 1/4” and 3/8”
