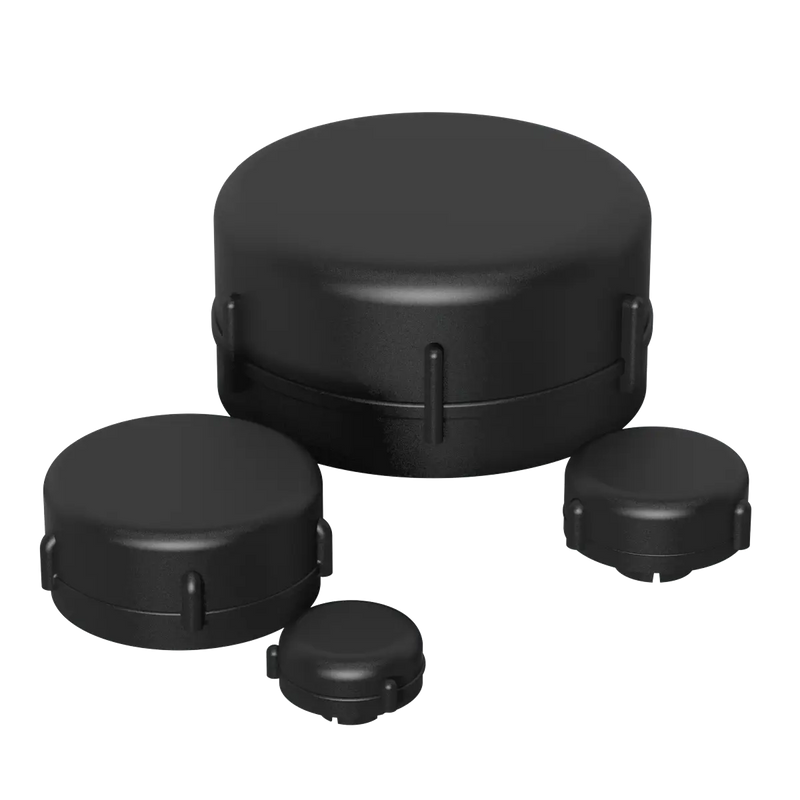

SpinMeister® Precleaners

Intake air is drawn through the angled louver plates which direct the air to turn the rotor. The centrifugal force separates the contaminants from the airstream, throwing them to the outer perimeter of the cover, expelling them through the discharge port. Cleaner air is drawn to the lower chamber and filtered by a 99% efficient pleated element.

SpinMeister® Precleaners

Features

Technical Specifications

  • Temp (continuous): min -60°F (-51°C) max 250°F (121°C)
  • 85%+ removal efficiency standard to 15 microns
  • Heavy duty vibration resistant stainless steel clamp

Options

Molded SpinMeisters®

  • Molded fiber filled composite housing
  • Plastic rotors
  • May be used with Solberg Inlet SpinMeister® Filter Assemblies

Aluminum SpinMeisters®

  • Polished aluminum housing
  • Stainless steel rotors
  • May be used with Solberg Inlet SpinMeister® Filter Assemblies

SpinMeisters® for Vacuum

  • Low pressure drop design
  • Molded fiber filled composite housing
  • Stainless steel rotors
  • May be used with Solberg Vacuum Filter Series



Model Price
SM6 $403.00
SM4 $260.00
SM3 $258.00
SM2 $170.00
SM1.5 $125.00
SML445 $489.00
SML345 $472.00
SML235 $374.00
SMA9 $1,395.00
SMA8 $999.00
SMA7 $999.00
SMA6 $850.00
SMA5 $796.00
SMA4.5 $796.00
SMA4 $652.00
SMA3 $539.00
SMA2.5 $242.00
SMA2 $290.00
SM-6 $403.00
SM-4 $260.00
SM-3 $258.00
SM-2 $170.00
SM-1.5 $125.00
