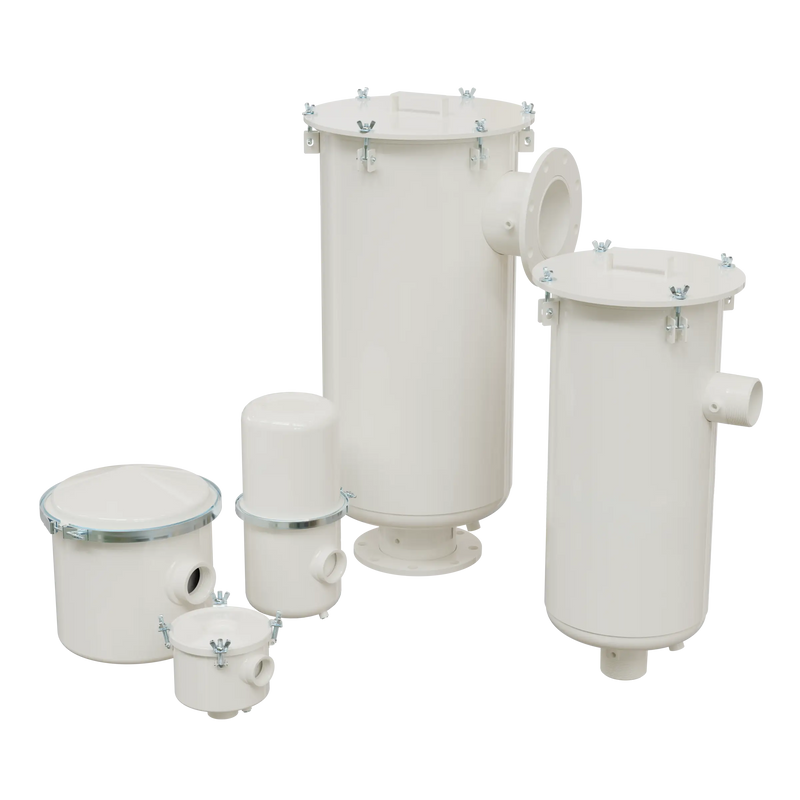

HDL Series: Industrial Oil Mist Filters
Important Product Update
The small CSL/HDL line will be undergoing a product update beginning in Q4 of 2025. Learn about the update here.
The HDL series removes oil mist and aerosols from the discharge of vacuum pumps. Rugged construction, coalescing media options, and Solberg technology make the HDL a proven solution to safeguard work areas from environmentally hazardous oil mist and smoke.
Features
- Captures oil fog, mist or aerosol from exhaust of oil sealed vacuum pumps
- Waste oil can be recycled
- Pleated filter element provides increased surface area for low back pressure separation of ultra-fine oil mists
- Seamless drawn housings (1" - 2.5" connections)
- O-ring sealed housings
- Corrosive resistant white powder coat carbon steel
- Discharge baffle (1" - 2.5" connections)
- 1/4” NPSC drain tap (1" - 2.5" connections)
- 1/2” NPT drain tap (3" - 8" connections)
Technical Specifications
- 0.3 micron media; 99.97% efficiency
- Continuous operating temp: 68°F (20°C) to 180°F (80°C)
- Mounted vertically
- Pressure rating (2" - 8", DN125-200 sizes): 7.25 psi (0,5 bar)
- Pressure rating (1" - 1.5" sizes): 2 psi (0,13 bar)
Options
- Lower back pressure media
- Application specific gaskets/seals
- Custom connections
- Various finishes
- Stainless steel housings (select models)
- Nameplate bracket (3" - 8" connections)
- Lifting lugs (3" - 8" connections)
Applications
- Blower Exhaust Oil Mist
- Cement
- Food Processing-Pressure
- Nailers/Staplers
- Paper Processing
- Vacuum Coating
- Vacuum Freeze Dry
- Vacuum Outgassing
- Industrial Vacuum Processes
- Oil removal for pressure unloading vents on piston compressors
- Captures oil fog, mist, or smoke from exhaust on oil flooded vacuum pumps
- Any application requiring low delta p coalescing of large air volumes
- Specifications
- Documents
| Model | Price |
|---|---|
| HDL-PSG850/1-200HC | $662.00 |
| HDL-PSG848-100HC | $361.00 |
| HDL-PSG848-101HC | $375.00 |
| HDL-PSG860/1-251HC | Contact for Price |
| HDL-PSG860/1-250HC | $780.00 |
| HDL-PSG860/1-201HC | Contact for Price |
| HDL-PSG860/1-200HC | $780.00 |
| HDL-PSG850/1-251HC | Contact for Price |
| HDL-PSG850/1-250HC | $676.00 |
| HDL-PSG850/1-201HC | Contact for Price |
| HDL-PSG848-151HC | Contact for Price |
| HDL-PSG848-150HC | $367.00 |
| HDL-PSG848-126HC | Contact for Price |
| HDL-PSG848-125HC | $363.00 |
| HDL-PSG476-DN200 | Contact for Price |
| HDL-PSG476-800F | $8,485.00 |
| HDL-PSG474/2-601 | Contact for Price |
| HDL-PSG474/2-600 | $5,665.00 |
| HDL-PSG474/2-501 | Contact for Price |
| HDL-PSG474/2-500 | $5,130.00 |
| HDL-PSG344/2-401 | Contact for Price |
| HDL-PSG344/2-400 | $3,180.00 |
| HDL-PSG344/2-301 | Contact for Price |
| HDL-PSG344/2-300 | $3,140.00 |
| HDL-PSG244/2-251HC | Contact for Price |
| HDL-PSG244/2-250C | $1,485.00 |
