Features

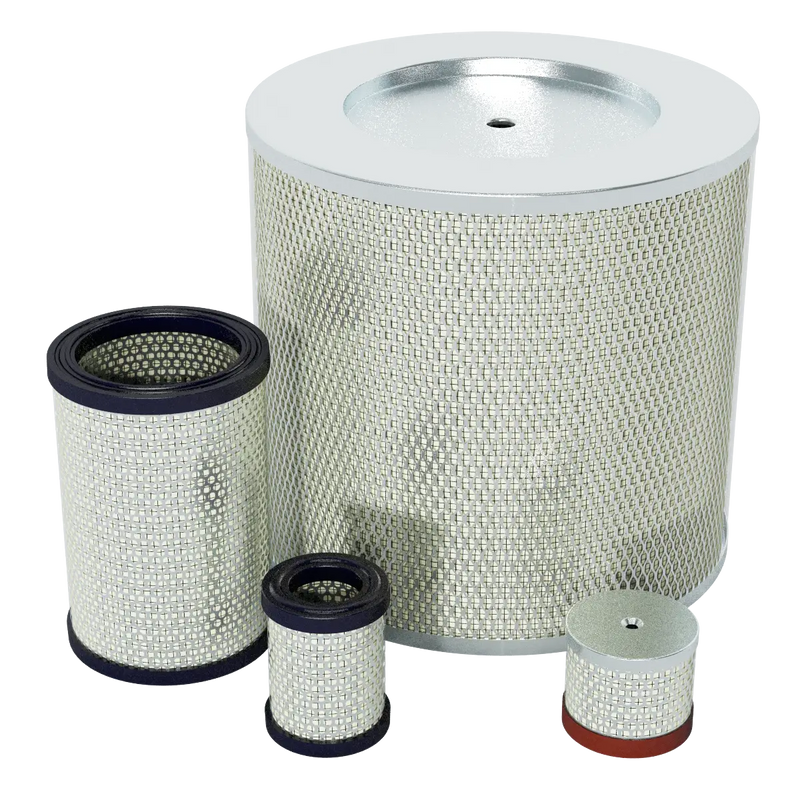

Replacement Filter Elements - Coalescing Media
Solberg uses top-quality, industrial-grade filter media, plastisols, potting compounds, and structural components to achieve exceptional performance. We optimize surface area to offer low pressure drop and long filter life. OEMs, resellers, and end-users know they can trust our coalescing filter elements to perform when oil mist filters are needed.
Features of Our Coalescing Filters
- Rated for 99.97% removal efficiency at 0.3 micron
- Eliminate visible emissions when sized and deployed properly
- Oil-resistant construction materials suitable for most oil types
- Large surface areas for longer element life
Options
Endcap Styles
- B = Closed one end with bolt hole, open on other end
- D = Element with molded open end, metal closed
- G = Galvanized metal
- M = Molded plastisol
- P = Pleated coalescing media
- W = Wrapped coalescing media
Applications
- Blower Exhaust Oil Mist
- Cement
- Food Processing-Pressure
- Nailers/Staplers
- Paper Processing
- Vacuum Coating
- Vacuum Freeze Dry
- Vacuum Outgassing
- Industrial Vacuum Processes
- Oil removal for pressure unloading vents on piston compressors
- Captures oil fog, mist, or smoke from exhaust on oil flooded vacuum pumps
- Any application requiring low delta p coalescing of large air volumes
- Custom vacuum pumping systems
- Specifications
- Documents
| Model | Price |
|---|---|
| FG10 | $73.50 |
| PSG925 | $99.00 |
| PSG860/1 | $198.00 |
| PSG850/1 | $143.00 |
| PSG848 | $99.00 |
| PSG476 | $1,835.00 |
| PSG474/2 | $1,010.00 |
| PSG374/2 | Contact for Price |
| PSG344/2 | $500.00 |
| PSG244/2 | $462.00 |
| PSG145 | $194.00 |
| GL915 | $62.50 |
| GL910 | $62.50 |
| FG9 | $63.00 |
| FG7 | $43.10 |
| FG5 | $38.00 |
| FG3 | $36.80 |
| FG24 | $138.00 |
| FG20 | $129.00 |
| FG11 | $99.00 |
