| Model | PSG850/1 |
| Media | Coalescing |
| Micron rating | 0.3 |
| Qty per box | 4 |
| Case quantity | 8 |
| Outer dimension | 5.91 in |
| Inner dimension | 3.5 in |
| Height | 8.46 in |

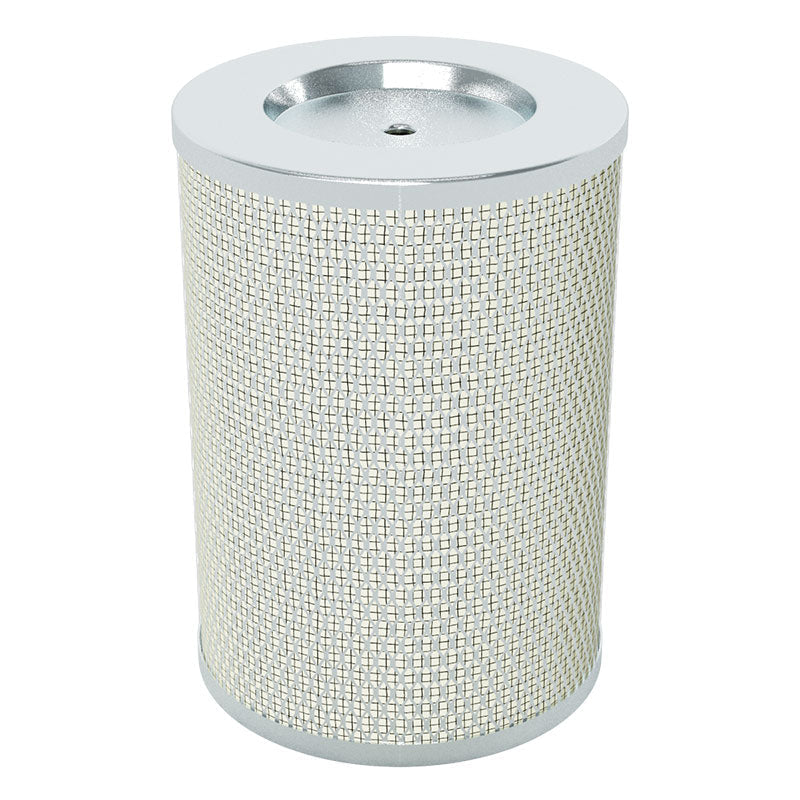

Replacement Filter Elements - Coalescing Media
Solberg uses top-quality, industrial-grade filter media, plastisols, potting compounds, and structural components to achieve exceptional performance. We optimize surface area to offer low pressure drop and long filter life. OEMs, resellers, and end-users know they can trust our coalescing filter elements to perform when oil mist filters are needed.
Features of Our Coalescing Filters
- Rated for 99.97% removal efficiency at 0.3 micron
- Eliminate visible emissions when sized and deployed properly
- Oil-resistant construction materials suitable for most oil types
- Large surface areas for longer element life
Application
- Blower Exhaust Oil Mist
- Cement
- Food Processing-Pressure
- Nailers/Staplers
- Paper Processing
- Vacuum Coating
- Vacuum Freeze Dry
- Vacuum Outgassing
- Industrial Vacuum Processes
- Oil removal for pressure unloading vents on piston compressors
- Captures oil fog, mist, or smoke from exhaust on oil flooded vacuum pumps
- Any application requiring low delta p coalescing of large air volumes
- Custom vacuum pumping systems
Options
Endcap Styles
- B = Closed one end with bolt hole, open on other end
- D = Element with molded open end, metal closed
- G = Galvanized metal
- M = Molded plastisol
- P = Pleated coalescing media
- W = Wrapped coalescing media
