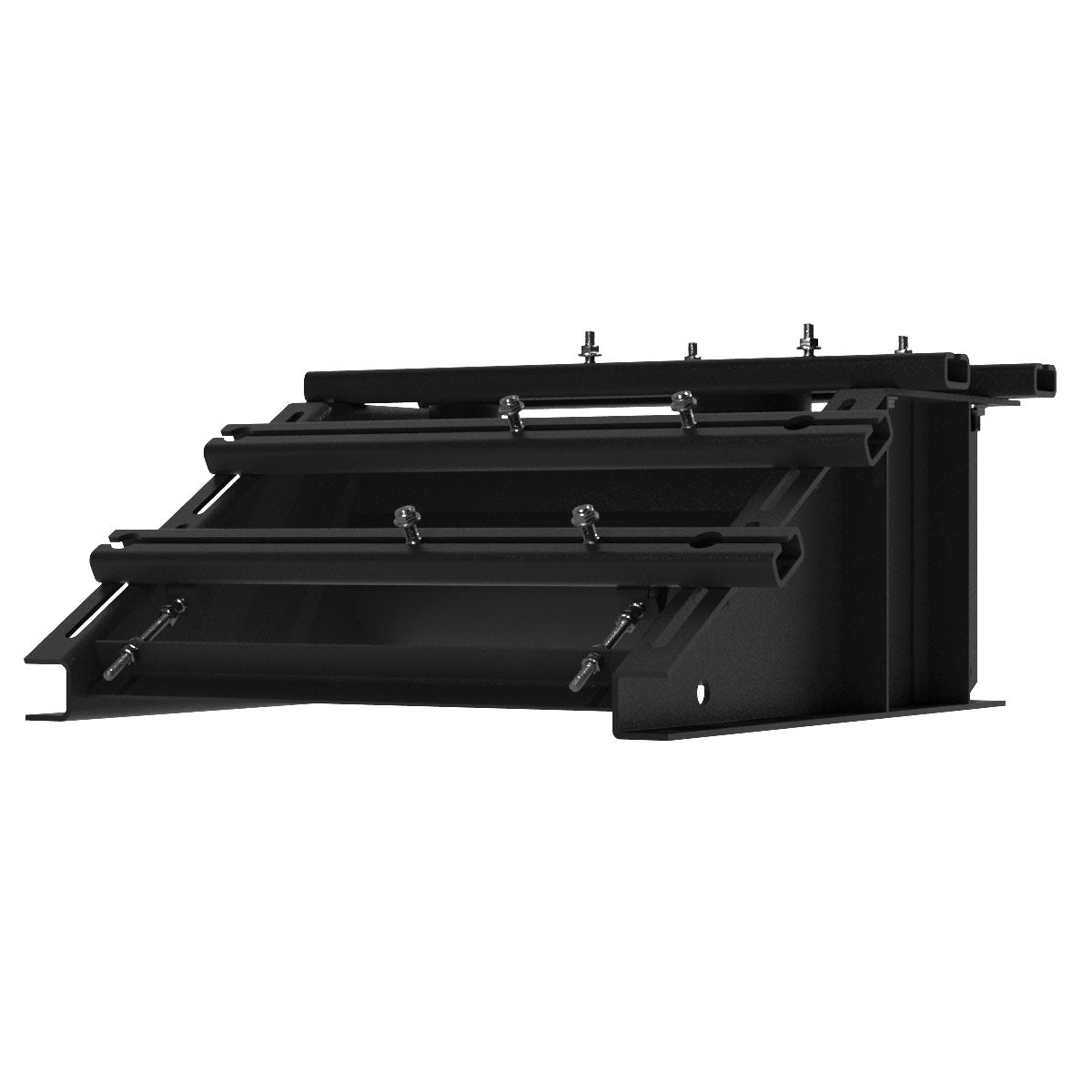

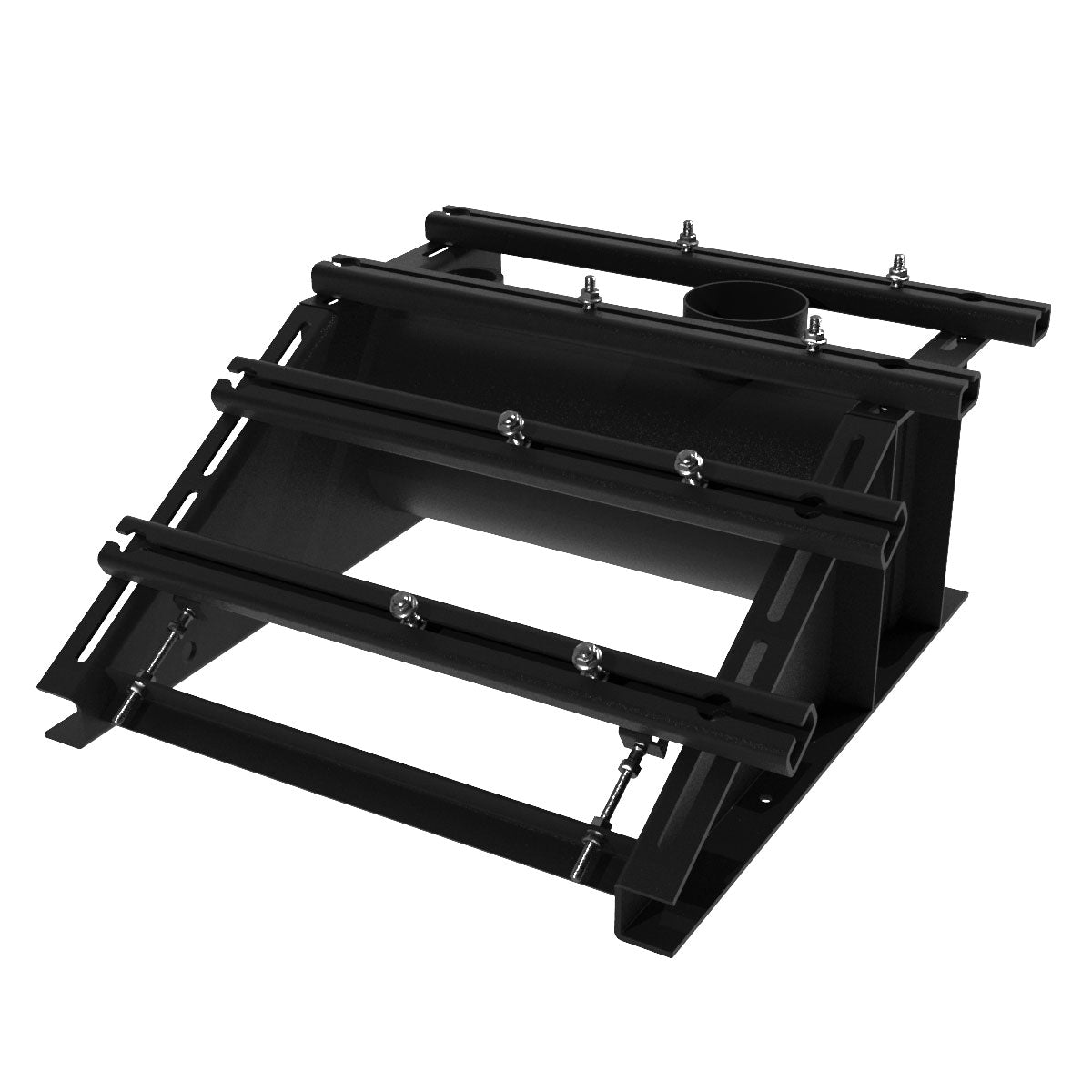

Filters, Traps, & Silencers  /  Industrial Silencers for Blowers, Compressors, & Vacuum Pumps  /  BBF Series: Positive Displacement Blower Silencer Frames  /
Model #

BBF600F


$5660.00 / each

Please order in case or box quantities.
A $100.00 net minimum order is required. Thank you.

Provided for reference only.

Contact us for more info.


Download 2D Drawing Request 3D Model
  • BBF Family
  • BBF Diagram
OVERVIEW, DOCUMENTS, AND MORE
LOADING

Specifications

Model
BBF600F
Inlet Connection Size (in.)
6
Outlet Connection Size (in.)
6
Connection Type
ANSI FLG Pattern
Flow (SCFM)
1100
Dim A (in.)
17.76
Dim B (in.)
39.5
Dim C (in.)
38.45
Weight (lbs.)
398
Finish
Black Powder
Quantity per Box
1
Case Quantity
1
  • Overview
  • Product Documents
  • Alternative Solutions

Features

  • Reactive style silencing design
  • Integrated discharge silencer
  • Adjustable motor supports for belt tensioning
  • Pre‐assembled rails to frame
  • Corrosive resistant black powder coat carbon steel

Technical Specifications

  • Pressure Rating: 14.7 psig (1 ATM).
  • Hardware kit (SAE std. nuts, bolts, washers) included
  • Ports for relief valve, pressure & temperature gauges

Options

  • Purpose built belt guard
  • Flexible boot kit (clamp, flex adapter)
  • Flange adapters
  • Snubber discharge silencer for vacuum applications
  • Contact factory for best Solberg filter for your package

Applications

  • Blowers - "Roots"
  • Pneumatic Conveying Systems
  • Waste Water Aeration
  • Blowers - PD Type
  • Material Handling Systems
