RST Series: Reverse Pulse Vacuum Pump Filters

Solberg’s RST Series reverse pulse industrial filter is designed for extreme dust load applications. Similar to a reverse pulse style bag house, this heavy-duty vacuum pump filter incorporates split-second bursts of pressurized air to create powerful shock waves that clean the filter element. Quick pulses cause particulate accumulated on the filter element to release and collect in the drop-out area of the filter housing. Pulses can be repeated as required and can occur “in-process” because the split-second air bursts have minimal effect on system pressure. Our self-cleaning air filter can be manually controlled or automated based on user preference. (Optional reverse pulse kit available.)

Solberg’s RST Series:

  • Extends the service life of your filter element
  • High-efficiency filtration offers enhanced equipment protection
  • See-through design allows for instant visual inspection
  • Optional automation allows for easy maintenance
  • Available extended bucket increases capacity

Contact us for more information on our Reverse Pulse Vacuum series. We are happy to guide you to the right filtration products for your application.

  • RST Series Family

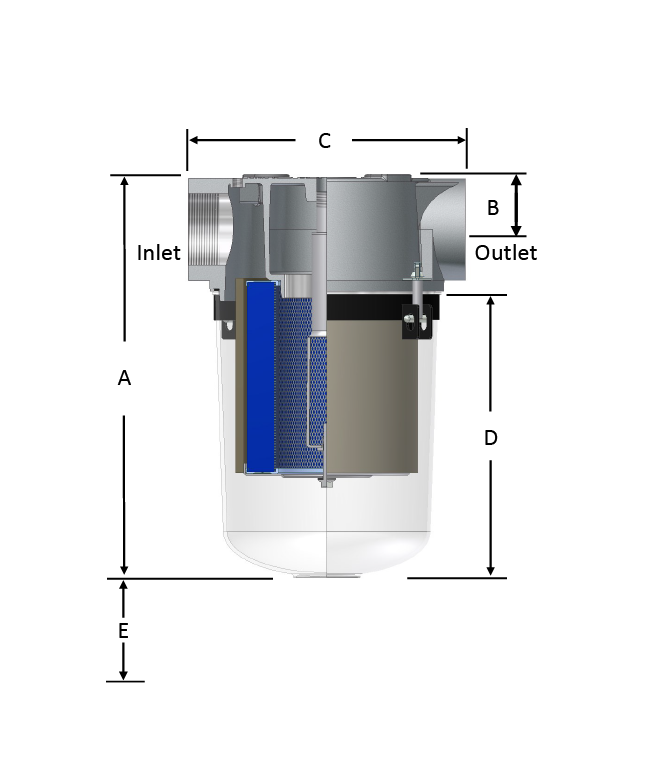

  • RST Diagram
RST Series Family
OVERVIEW, DOCUMENTS, AND MORE
LOADING
Units

Specifications

Refine Results
Clear All
Connection Size
Clear
Model Inlet Connection Size (in.) Outlet Connection Size (in.) Connection Type Flow (SCFM) Dim A (in.) Dim B (in.) Dim C (in.) Dim D (in.) Dim E (in.) Holding Capacity (gal) Media Micron Rating Replacement Element SelectorConnectionSizeImperial
RST-TF235-300C 3 3 FPT 154 19.75 2.75 13.50 14.00 9.00 PTFE 0.3 TF235 3" to 6" Add To Cart
RST-TF235-400C 4 4 FPT 154 19.75 2.75 13.50 14.00 9.00 PTFE 0.3 TF235 3" to 6" Add To Cart
RST-TF851/1-200C 2 2 NPSC 117 16.25 2 9 12.5 9 PTFE 0.3 TF851/1 Up to 2.5" Add To Cart
RST-TF851/1-250C 2.5 2.5 FPT 117 16.25 2 9 12.5 9 PTFE 0.3 TF851/1 Up to 2.5" Add To Cart
RST-TF897-100C 1 1 NPSC 40 13.25 1.50 7.00 10.25 9.00 PTFE 0.3 TF897 Up to 2.5" Add To Cart
RST-TF897-125C 1.25 1.25 NPSC 40 13.25 1.50 7.00 10.25 9.00 PTFE 0.3 TF897 Up to 2.5" Add To Cart
RST-TF897-150C 1.5 1.5 NPSC 40 13.25 1.50 7.00 10.25 9.00 PTFE 0.3 TF897 Up to 2.5" Add To Cart
Refine Results
Clear All
Connection Size Metric
Clear
Model Inlet Connection Size (in.) Outlet Connection Size (in.) Connection Type Flow (m3/hr) Dim A (mm) Dim B (mm) Dim C (mm) Dim D (mm) Dim E (mm) Holding Capacity (L) Media Micron Rating Replacement Element SelectorConnectionSizeMetric
RST-TF235-301C 3 3 BSPP 261 502 70 343 356 228 PTFE 0.3 TF235 3" to 6"
RST-TF235-401C 4 4 BSPP 261 502 70 343 356 228 PTFE 0.3 TF235 3" to 6"
RST-TF851/1-201C 2 2 BSPP 199 413 51 229 315 228 PTFE 0.3 TF851/1 Up to 2.5"
RST-TF851/1-251C 2.5 2.5 BSPP 199 413 51 229 315 228 PTFE 0.3 TF851/1 Up to 2.5"
RST-TF897-101C 1 1 BSPP 68 336 39 177 260 228 PTFE 0.3 TF897 Up to 2.5"
RST-TF897-126C 1.25 1.25 BSPP 68 336 39 177 260 228 PTFE 0.3 TF897 Up to 2.5"
RST-TF897-151C 1.5 1.5 BSPP 68 336 39 177 260 228 PTFE 0.3 TF897 Up to 2.5"
  • Overview
  • Product Documents
  • Alternative Solutions

Features

  • See-through bucket made from shatter resistant polycarbonate material
  • High tensile strength permits dimensional stability
  • Integrated inlet baffle
  • Tap on center of cast head for optional reverse pulse kit air pulse rod:
  • 3/8” NPSC tap on 1” sizes, 3/4” NPSC tap on 2 - 4” sizes
  • Sturdy swing “claw” bolts clamps bucket to head

Options

  • Carbon steel bucket (RCT)
  • Extended bucket (RSTD)
  • Alternate media

Applications

  • Ash Handling
  • Cement
  • Paper Processing
  • Pneumatic Conveying Systems
  • Vacuum Pumps & Systems
  • Woodworking
  • Routing Industry
