| Model | RST-TF235-301C |
| Outlet size | 3 in |
| Connection type | BSPP |
| Flow (SCFM) | 147 |
| Dimension a | 19.75 in |
| Dimension b | 2.75 in |
| Dimension c | 13.5 in |
| Dimension e | 9 in |
| Weight | 29 lb |
| Media | PTFE |
| Micron rating | 0.3 |
| Qty per box | 1 |
| Case quantity | 1 |
| Replacement element | TF235 |

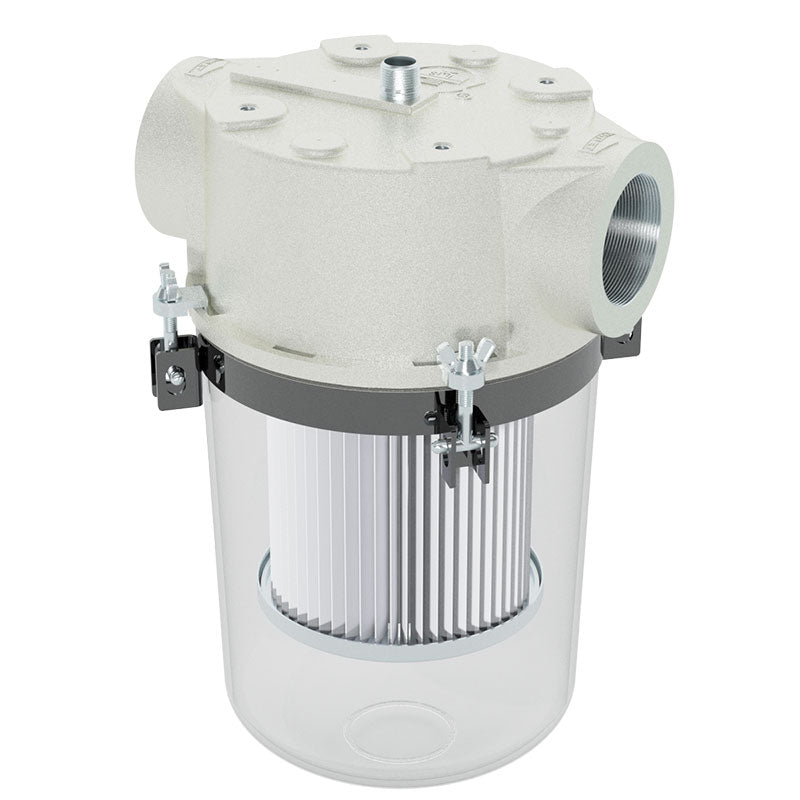

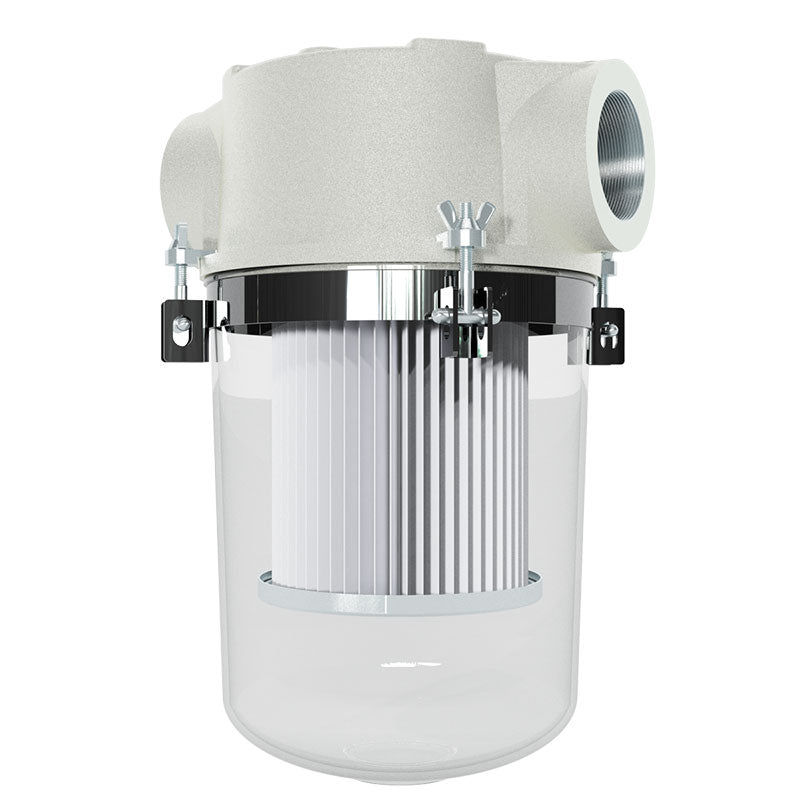

- See-through bucket made from shatter resistant polycarbonate material
- High tensile strength permits dimensional stability
- Integrated inlet baffle

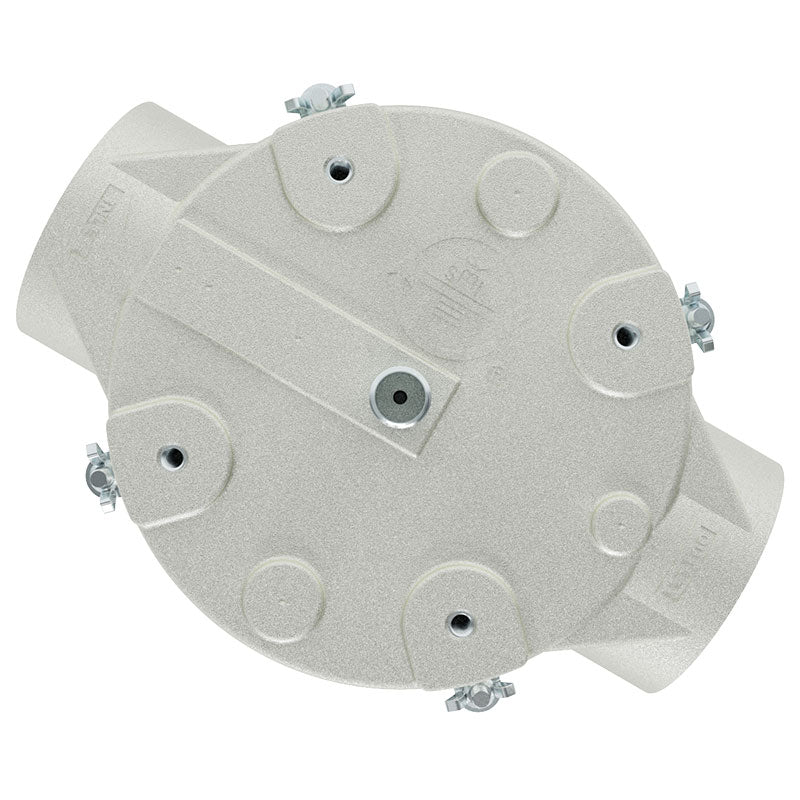

- Tap on center of cast head for optional reverse pulse kit air pulse rod:
- 3/8” NPSC tap on 1” sizes, 3/4” NPSC tap on 2 - 4” sizes
- Sturdy swing “claw” bolts clamps bucket to head
Application
- Ash Handling
- Cement
- Paper Processing
- Pneumatic Conveying Systems
- Vacuum Pumps & Systems
- Woodworking
- Routing Industry
Options
- Carbon steel bucket (RCT)
- Extended bucket (RSTD)
- Alternate media
