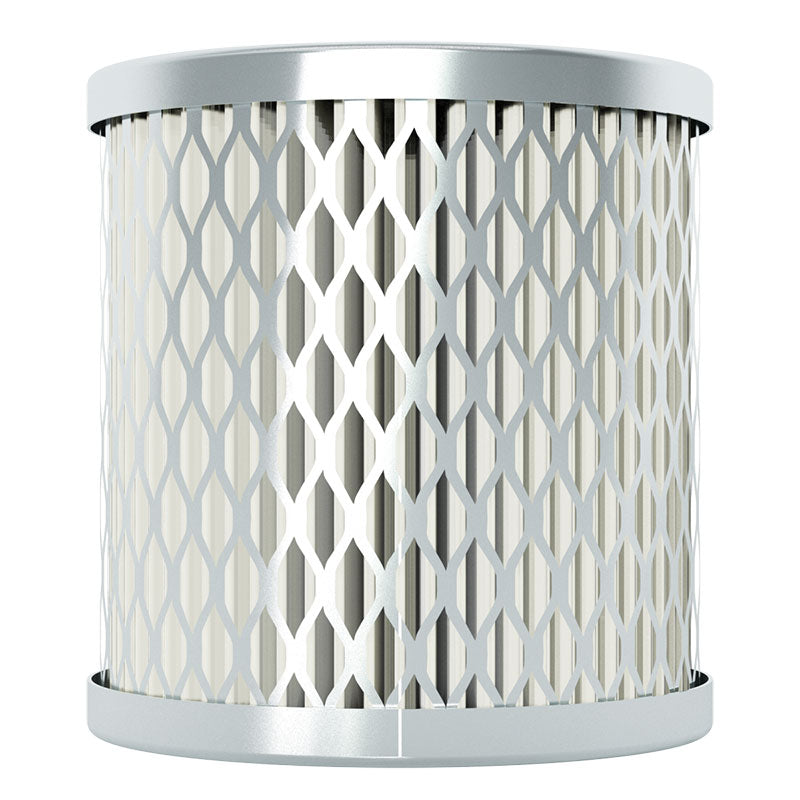

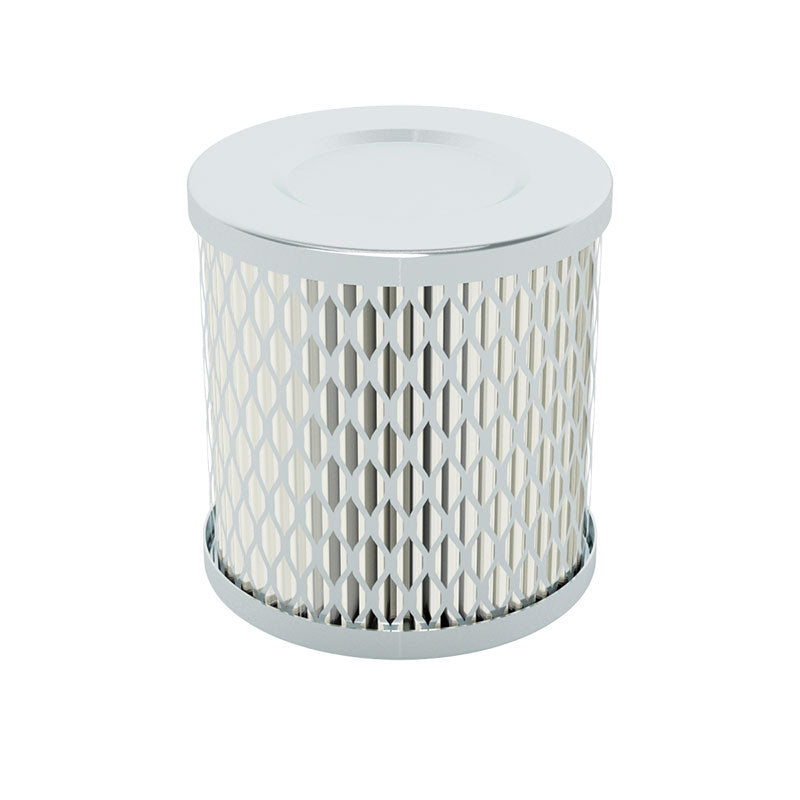

| Model | 824 |
| Flow (SCFM) | 25 |
| Weight | 0.5 lb |

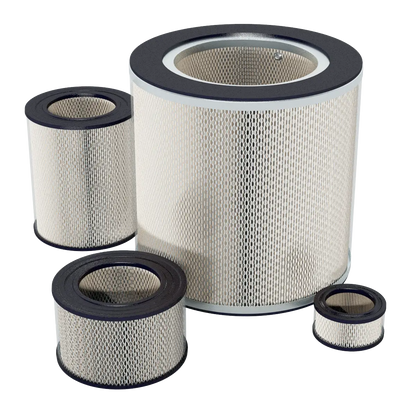

| Media | Paper |
| Micron rating | 2.0 |
| Qty per box | 36 |
| Case quantity | 36 |
| Outer dimension | 2.54 in |
| Inner dimension | 1.5 in |
| Height | 2.66 in |
| Surface area | 0.8 in |
- Rated for 99+% removal efficiency at 2 micron
- Low pressure drop for improved equipment performance
- Pleated construction for increased dirt-holding capacities
Options
- Polyester/Paper Media with SS ID/OD, J Series (select sizes)
- Polyester/Paper Media with SS ID/OD, Food Grade Silicone Endcaps, K Series (select sizes)
- Polyester/Paper Media with SS ID/OD/EC, Q Series (select sizes)
- Polyester/Paper Media with SS ID/OD/EC, Silicone Endcap Adhesive, R Series (select sizes)
- Atex Certification (select models)
- Various gaskets or potting compounds

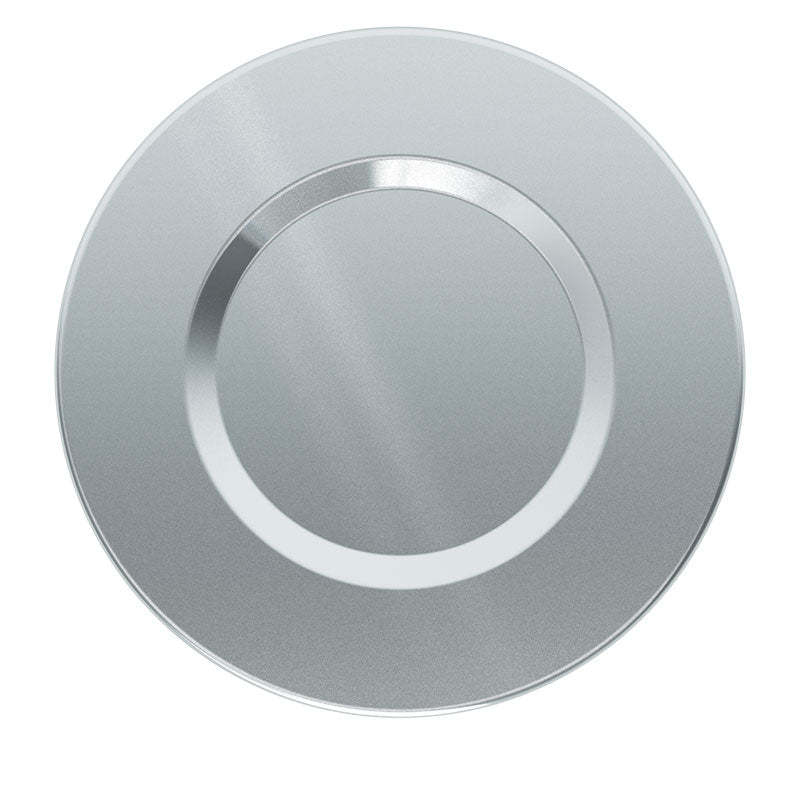

Endcap Styles
- B = Closed one end with bolt hole, open on other end
- C = Closed one end, open on other end
- F = Felt gaskets on open endcaps
- G = Galvanized metal
- H = Felt gasket on bolt hole
- M = Molded plastisol
- N = Neoprene blended gasket on open endcaps
- R = Mixed rubber/cork gasket on open endcaps
