- Specifications
- Features
- Documents
Imperial
Metric

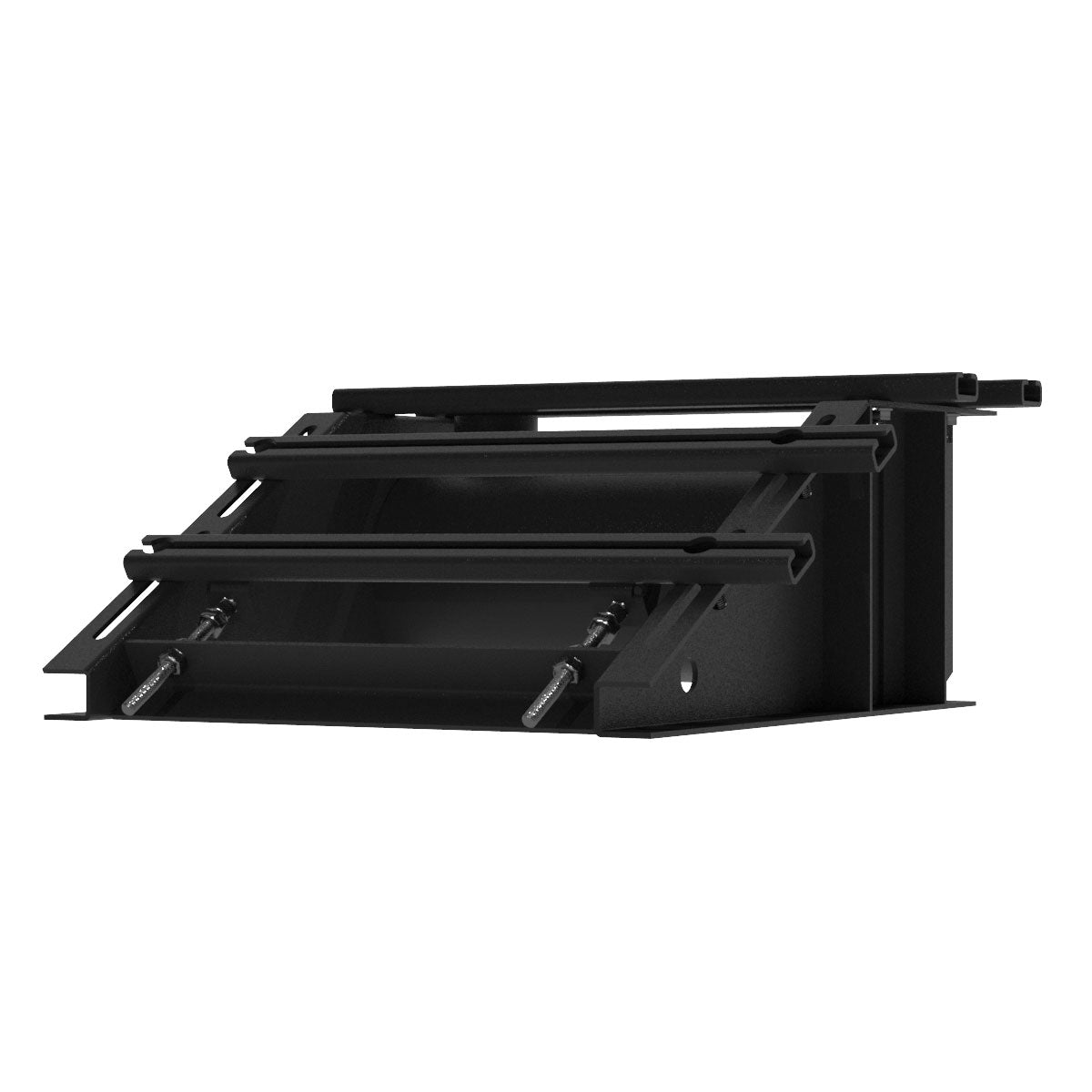

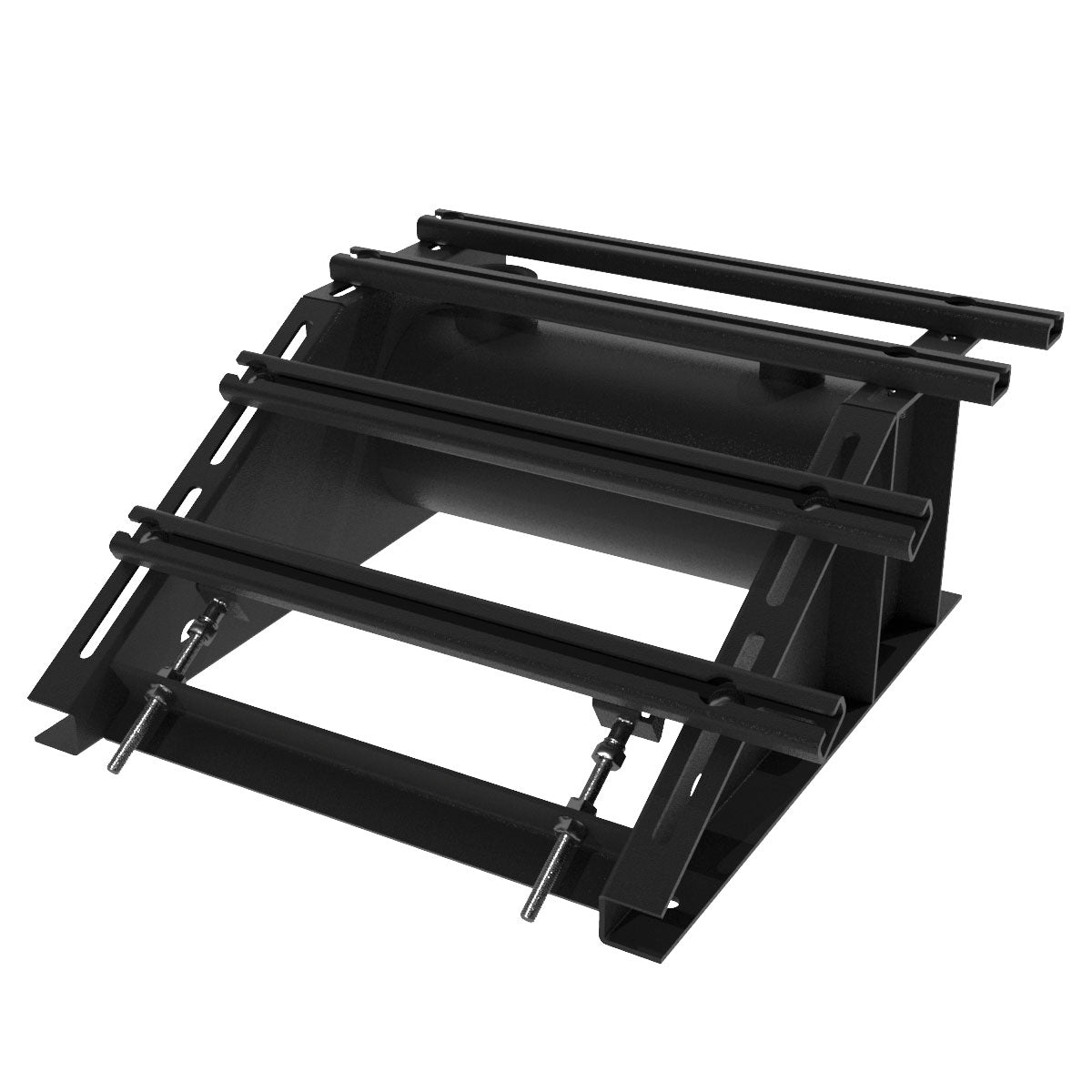

| Model | BBF200 |
| Outlet size | 2 in |
| Connection type | Pipe Stub | MNPT |
| Flow (SCFM) | 135 |

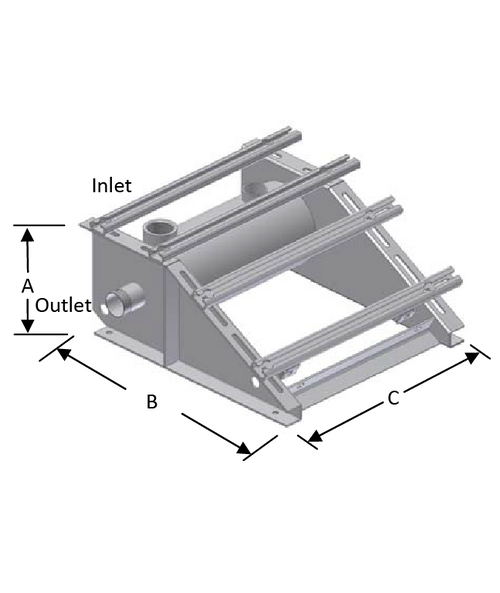

| Dimension a | 24 in |
| Dimension b | 28 in |
| Dimension c | 11 in |
| Weight | 130 lb |
| Qty per box | 1 |
| Case quantity | 1 |
- Reactive style silencing design
- Integrated discharge silencer
- Adjustable motor supports for belt tensioning
- Pre‐assembled rails to frame
- Corrosive resistant black powder coat carbon steel
Technical Specifications
- Pressure Rating: 14.7 psig (1 ATM).
- Hardware kit (SAE std. nuts, bolts, washers) included
- Ports for relief valve, pressure & temperature gauges
Application
- Blowers - "Roots"
- Pneumatic Conveying Systems
- Waste Water Aeration
- Blowers - PD Type
- Material Handling Systems
Options
- Purpose built belt guard
- Flexible boot kit (clamp, flex adapter)
- Flange adapters
- Snubber discharge silencer for vacuum applications
- Contact factory for best Solberg filter for your package
