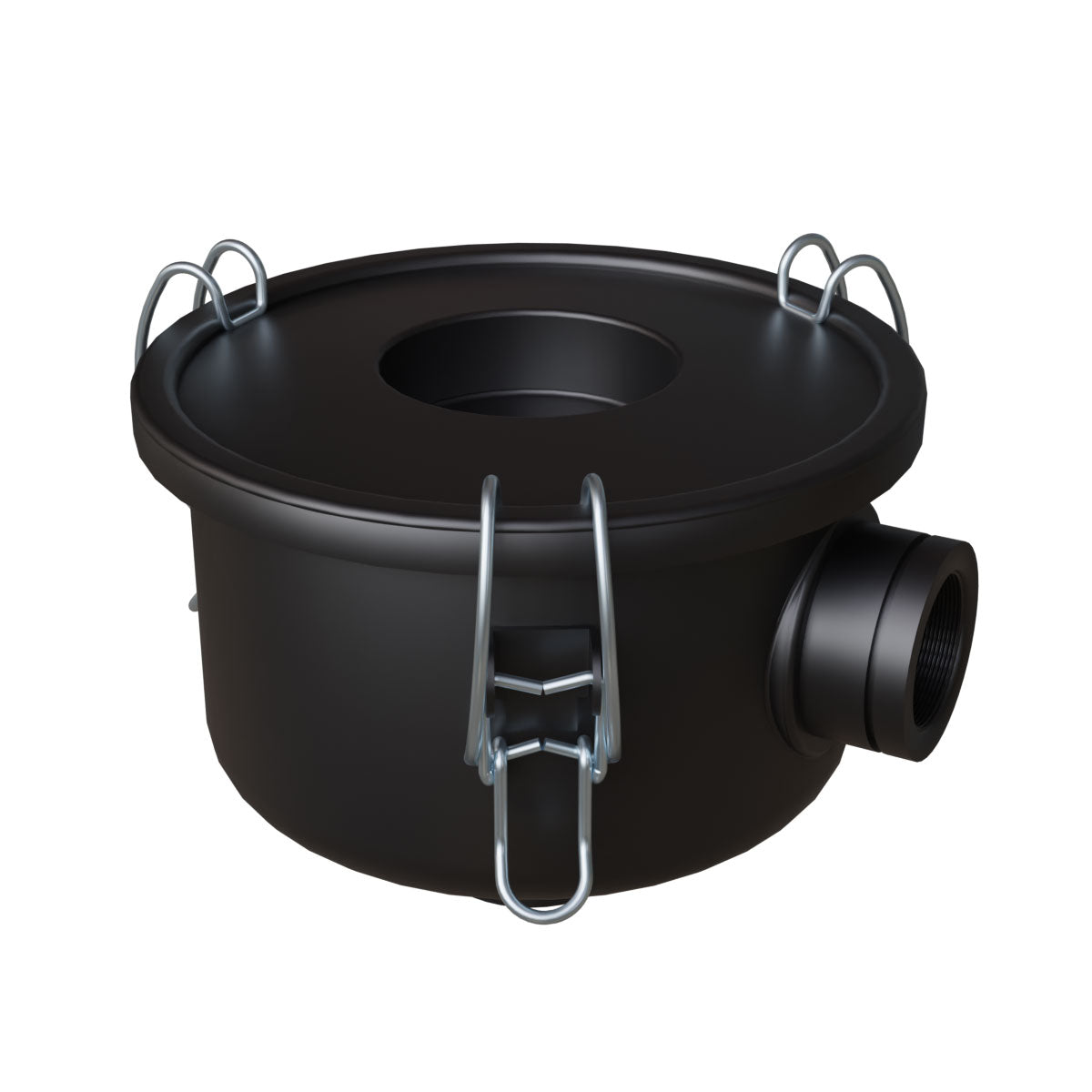

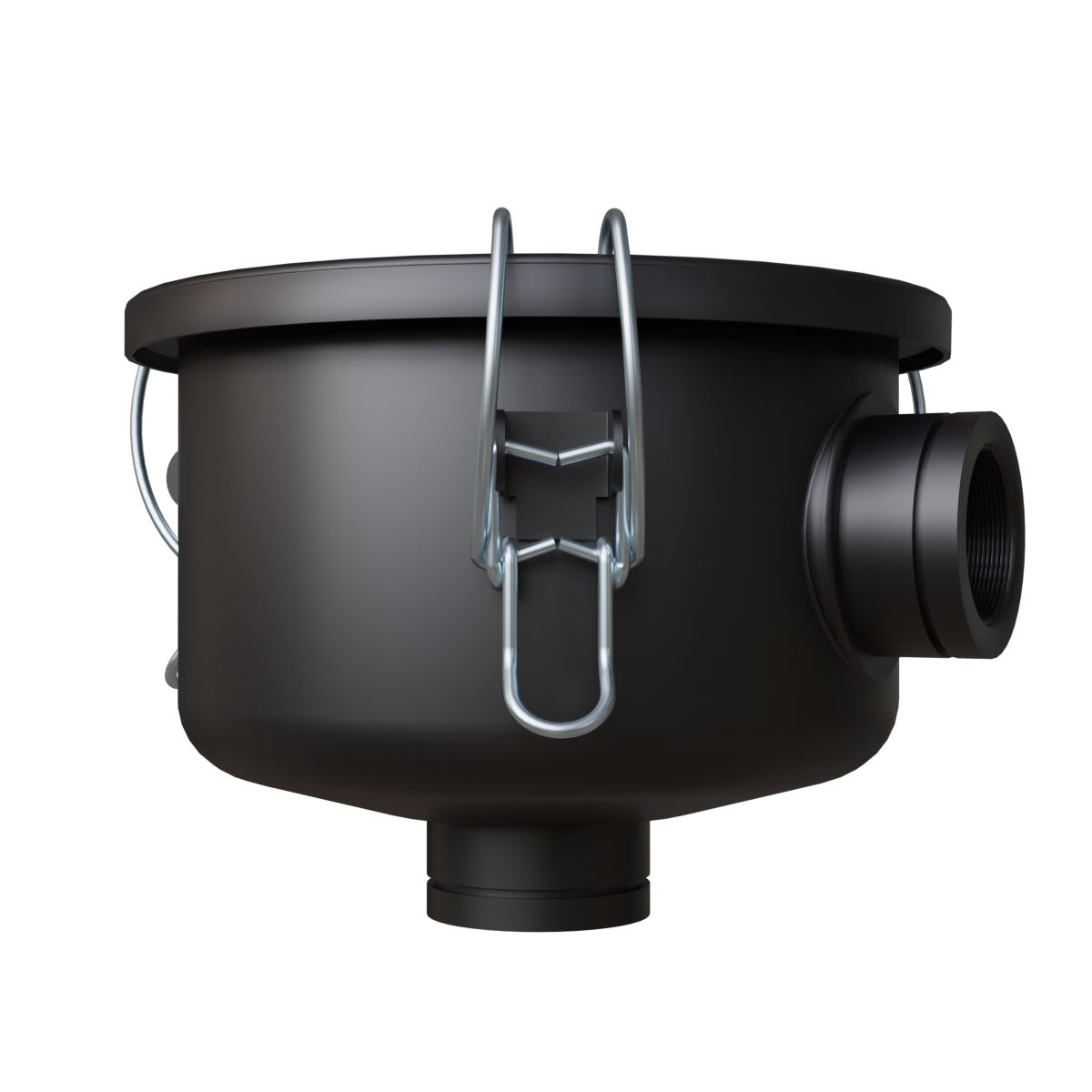

3/8" - 4" Connections:

• Seamless drawn housings
• O‐ring seal
• Corrosive resistant powder coat carbon steel
• Stainless steel torsion clips

3" - 12" Connections:

• Heavy duty T bolts for easy maintenance
• Corrosive resistant black powder coat carbon steel
• O-ring stays in place with unique U-channel groove
• Inlet & outlet 1/4” gauge taps (on select models)

Technical Specifications

• Vacuum Rating: medium vacuum service
• Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)
• Filter change out differential: 15-20"H₂O (37‐50 mbar) over initial Δ P
• Polyester: 99%+ removal efficiency standard to 5 micron
• Paper: 99%+ removal efficiency standard to 2 micron

Application

• Vacuum Packaging
• Vacuum Lifters
• Blowers-Side Channel
• Soil Venting/Remediation
• Factory Automation
• Woodworking
• Blowers-Side Channel
• Ash Handling
• Cement
• Compressor-Piston
• Compressor-Screw

Options

All Sizes:

• Vacuum gauge
• Straight-through configurations
• Various filter media
• Various finishes and connection styles
• Stainless steel

3/8" - 4" Connections: ​​

• Stainless steel (select models)
• ISO Flange (contact factory for specs, sizes & availability)
• Mounting housing bands
• Alternative top‐to‐canister fastening system for low pressure or pulsating systems

3" - 4" Connections: ​

• Differential inlet/outlet gauge taps
• Integrated baffle (3" - 4" connections)
• Support brackets

3" - 12" Connections: ​

• ISO Flange (contact factory for specs, sizes & availability)
• Flange faces free of paint
• Internal surfaces free of paint
• Lifting lugs
• Brackets for optional support legs
• Nameplate bracket
