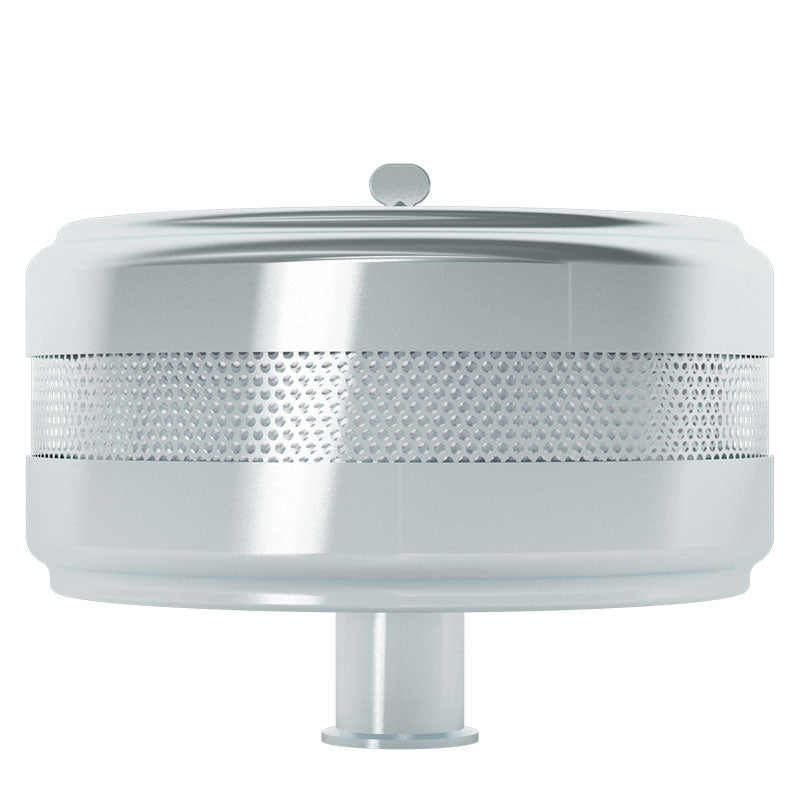

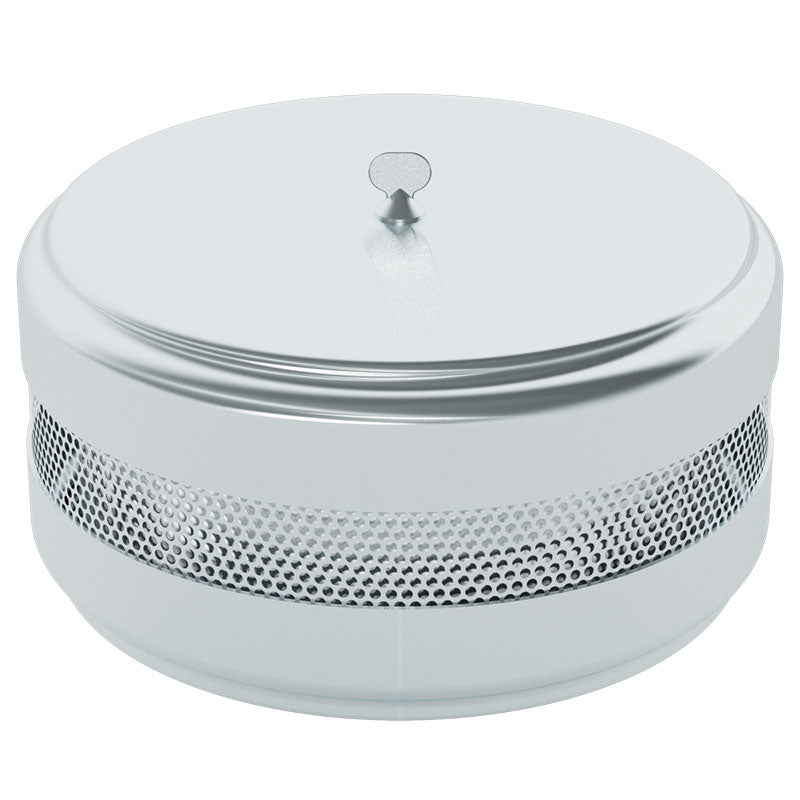

EF Series

• Captures oil fog, mist or aerosol from discharge of oil sealed vacuum pumps
• Steel construction with nickel plated finish
• Seamless drawn housings
• Easy thumb screw access for element maintenance
• Oil run-off from the filter returns to the pump

EFDB Series

• Captures oil fog, mist or aerosol from exhaust of oilsealed vacuum pumps
• Auto drain back design to recycle oil mist:
  • Internal drain returns oil back into pump
  • Prevents oil blow back with auto sealing
  • Enclosed housing allows for clean environment
• Steel construction with nickel plated finish
• Seamless drawn housings
• Easy thumb screw access for element maintenance
• Oil run-off from the filter returns to the pump

Application

• Blower Exhaust Oil Mist
• Hydraulic Breathers - fine filtration
• Leak Detection
• Vacuum Coating
• Vacuum Freeze Dry
• Vacuum Outgassing
• Industrial Vacuum Processes
• Captures oil fog, mist, or smoke from exhaust on oil flooded vacuum pumps
• Refrigeration and Air Conditioning evacuation service
• Semiconductor Industry
• Laboratory Industry
• Autoclaving, Sterilization
• Electronic tube and light bulb evacuation

Technical Specifications

• 0.3 micron media; 99.97% efficiency
• Continuous operating temp: 68°F (20°C) to 180°F (80°C)

Options

EF Series

• Additional ISO flange connections
• Nonstandard connection styles
