- Specifications
- Features
- Documents
Imperial
Metric

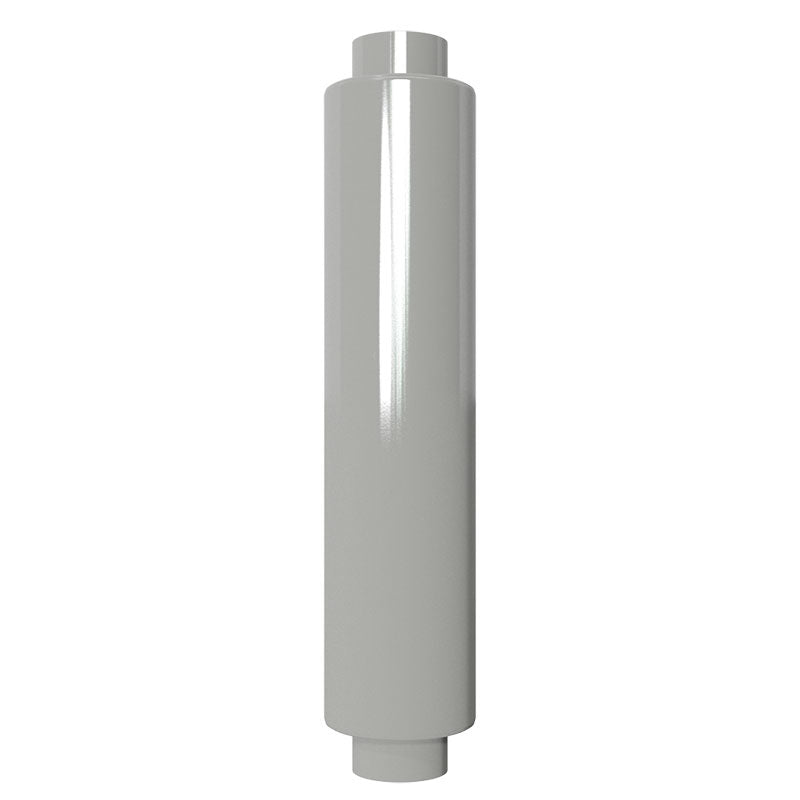

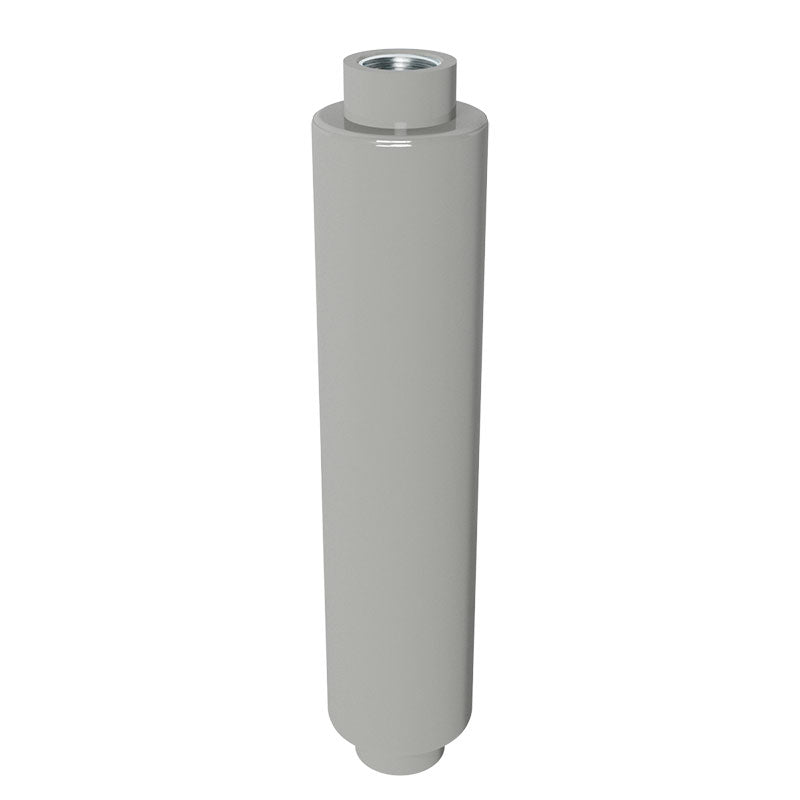

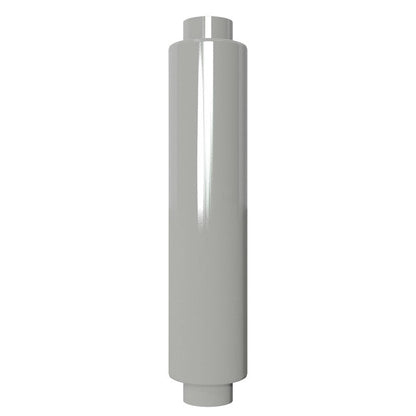

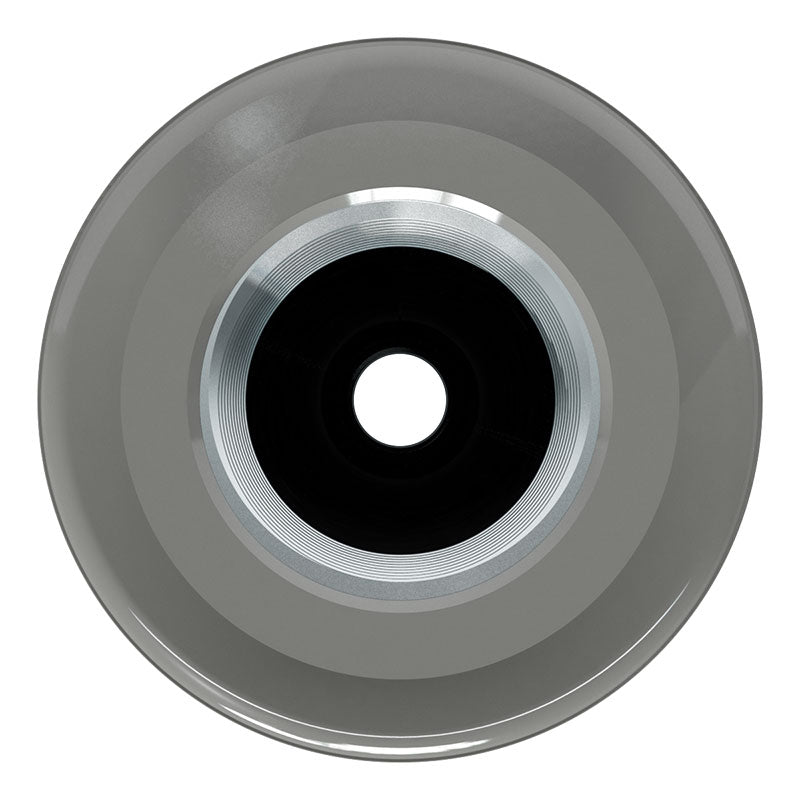

| Model | SLCR100 |
| Outlet size | 1 in |
| Connection type | NPSC |
| Flow (SCFM) | 42 |
| Dimension a | 12 in |
| Dimension b | 0.68 in |
| Dimension c | 2.5 in |
| Weight | 2 lb |
| Qty per box | 6 |
| Case quantity | 6 |
- Absorptive media pack
- Designed for minimal pressure drop
- For inlet and discharge inline air service
- Corrosive resistant gray powder coat carbon steel (1/2" to 1 1/2" connections)
- Epoxy coat finish (2" to 4" connections)
Application
- Blowers-Centrifugal
- Blowers-Regenerative
- Blowers-Side Channel
- Vacuum Lifters
- Vacuum Pump-Regenerative
Options
- Flange adapters
- For additional sizes, contact factory
- Special connections
- Hi-temp models
