| Model | SM2-19P-150 |
| Outlet size | 1.5 in |
| Connection type | MNPT |
| Flow (SCFM) | 85 |
| Dimension a | 10.75 in |
| Dimension b | 1.63 in |
| Dimension c | 7 in |
| Weight | 3.7 lb |
| Media | Polyester |
| Micron rating | 5.0 |
| Qty per box | 4 |
| Case quantity | 4 |
| Replacement element | 19P® |

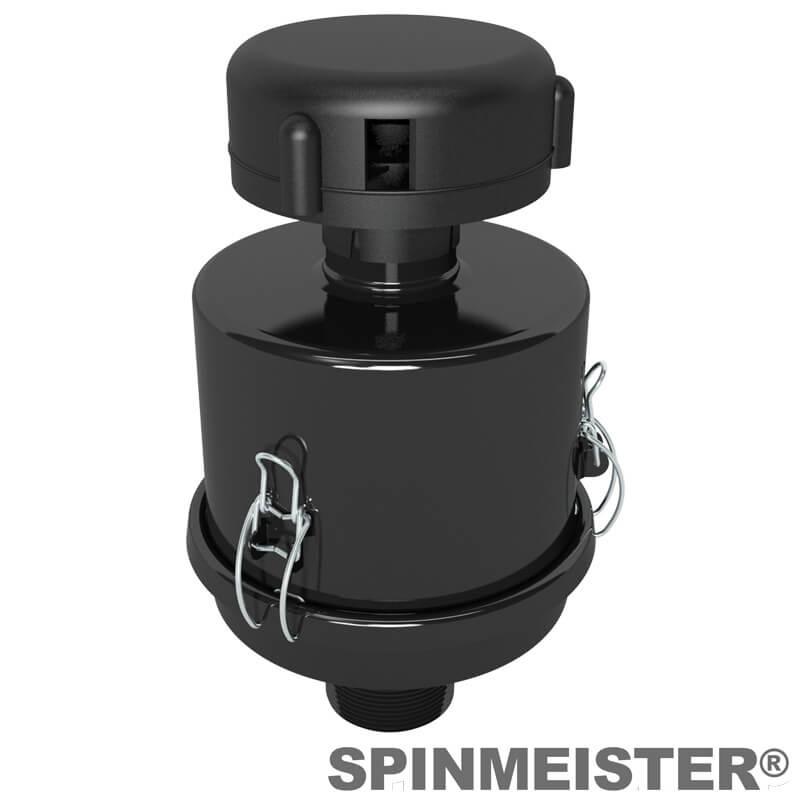

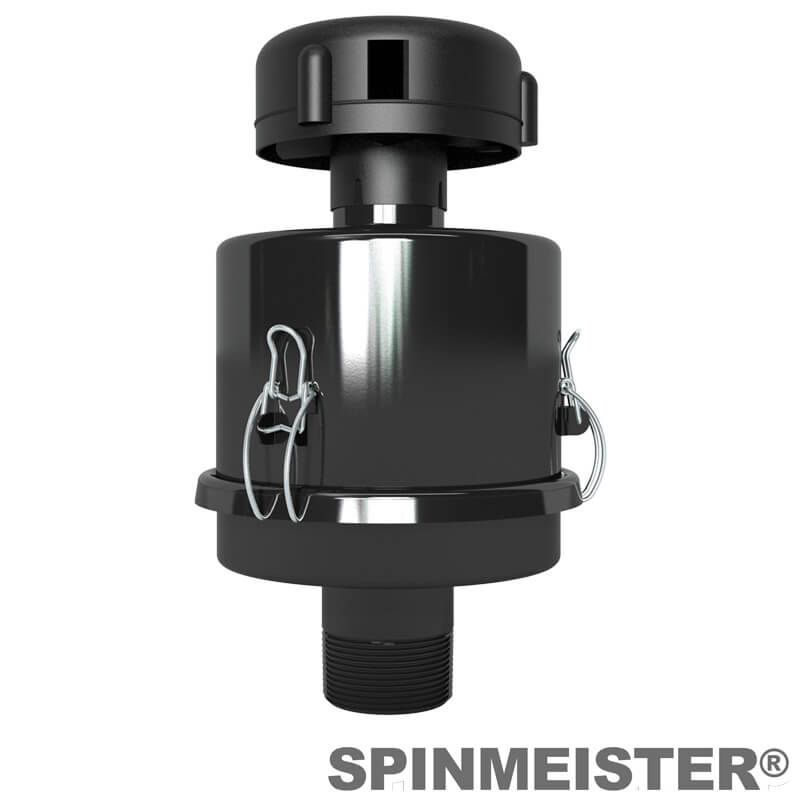

- SpinMeister® made of molded fiber filled composite material
- All small compact filters with seamless housings
- Corrosive resistant gray powder coat carbon steel
- Temp (continuous): min -15°F (-26°C) max 220°F (104°C)
- Filter change out differential: 15-20" H2O (37‐50 mbar) over initial Δ P
- Polyester: 99%+ removal efficiency to 5 micron
- Paper: 99%+ removal efficiency to 2 micron
- SpinMeister® Precleaner: 85% efficiency to 15 micron
Application
- Blowers-Regenerative
- Compressor-Piston
- Compressor-Screw
- Construction\Contractor Industry
- Vacuum Coating
- Vacuum Pumps & Systems
Options
- Tap holes
- SpinMeisters® available in polished aluminum
- Selected housings available in stainless steel
- Modify to meet specific application
