Filters, Traps, & Silencers / Vacuum Pump Discharge & Air / Oil Separation /

EE Series: Recirculating Oil Mist Filter

Units

USMetric

Specifications

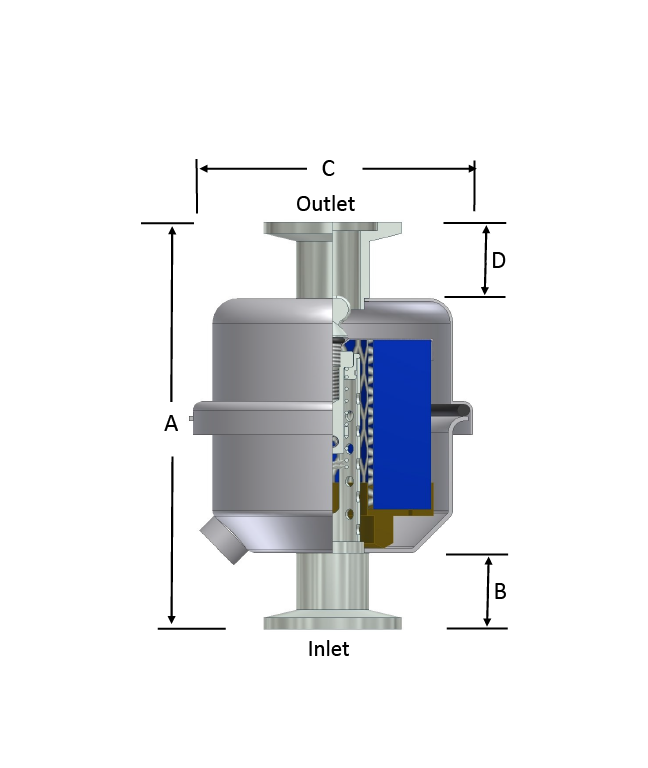

Model	Inlet Connection Size (in.)	Outlet Connection Size (in.)	Connection Type	Flow (SCFM)	Dim A (in.)	Dim B (in.)	Dim C (in.)	Dim D (in.)	Media	Micron Rating	Replacement Element
EE-GL915-075	.75	.50	MPT	8	4.68	1.25	3.25	0.50	Coalescing	0.3	GL915	Add To Cart
EE-GL915-NW16	NW16	NW16	ISO Flange	8	4.68	0.87	3.25	0.87	Coalescing	0.3	GL915	Add To Cart
EE-GL915-NW2516	NW25	NW25	ISO Flange	8	4.68	0.87	3.25	0.87	Coalescing	0.3	GL915	Add To Cart
EE-PSG925-NW25	NW25	NW25	ISO Flange	20	7.75	0.87	5.25	0.87	Coalescing	0.3	PSG925	Add To Cart

Model	Inlet Connection Size (in.)	Outlet Connection Size (in.)	Connection Type	Flow (m3/hr)	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)	Media	Micron Rating	Replacement Element
EE-GL915-075	.75	.50	MPT	14	119.00	32.00	83.00	13.00	Coalescing	0.3	GL915	Add To Cart
EE-GL915-NW16	NW16	NW16	ISO Flange	14	119.00	22.00	83.00	22.00	Coalescing	0.3	GL915	Add To Cart
EE-GL915-NW2516	NW25	NW25	ISO Flange	14	119.00	22.00	83.00	22.00	Coalescing	0.3	GL915	Add To Cart
EE-PSG925-NW25	NW25	NW25	ISO Flange	34	186.00	22.00	133.00	22.00	Coalescing	0.3	PSG925	Add To Cart

Overview
Product Documents
Alternative Solutions

Features

Captures oil fog, mist or aerosol from discharge of oil sealed vacuum pumps
Back pressure valve designed to release element at 0.5 bar (7.35 PSI) differential for pump safety
Seamless drawn housings
Corrosive resistant white powder coat carbon steel
EE-PSG925 assemblies come standard in zinc nickel finish
1/8” NPSC oil drain

Technical Specifications

0.3 micron media; 99.97% efficiency
Continuous operating temp: 68°F (20°C) to 180°F (80°C)
Mounted vertically

Options

Additional ISO flange connections
Various finishes available
Assemblies without a valve

Applications

Ash Handling
Blower Exhaust Oil Mist
Blowers-Centrifugal
Food Processing-Pressure
Leak Detection
Soil Venting/Remediation
Vacuum Coating
Vacuum Freeze Dry
Vacuum Outgassing
Industrial Vacuum Processes
Captures oil fog, mist, or smoke from exhaust on oil flooded vacuum pumps
Refrigeration and Air Conditioning evacuation service
Semiconductor Industry
Laboratory Industry
Autoclaving, Sterilization

Accessories-EE-SV

Discharge Filters Maintenance Manual

EE Datasheet

EE Datasheet (Metric)
