Model #

SLCR151


Provided for reference only.

Contact us for more info.


Download 2D Drawing Request 3D Model
  • SLCR Family

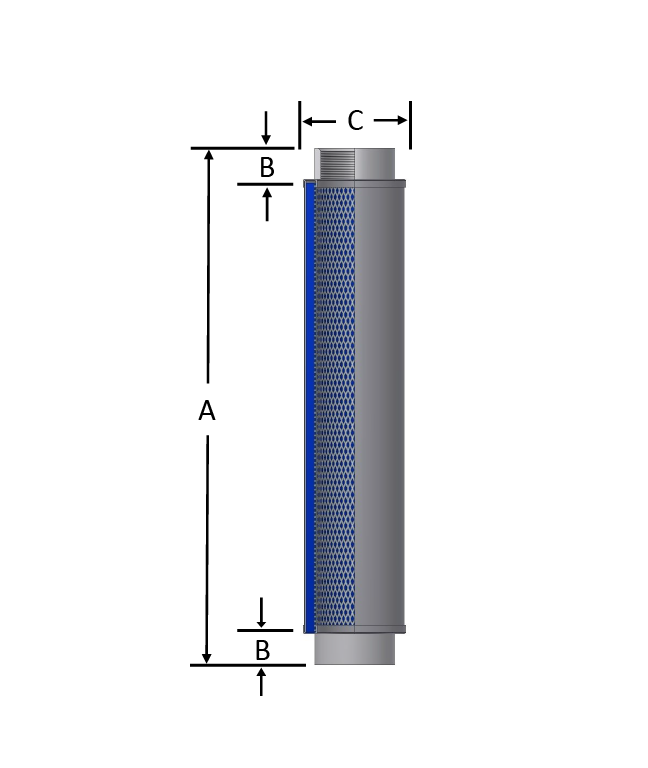

  • SLCR Diagram
OVERVIEW, DOCUMENTS, AND MORE
LOADING

Specifications

Model
SLCR151
Inlet Connection Size (in.)
1.5
Outlet Connection Size (in.)
1.5
Connection Type
BSPP
Flow (m3/hr)
264
Dim A (mm)
306.00
Dim B (mm)
17.00
Dim C (mm)
66.00
Weight (kg)
1.36
Finish
Gray Powder
Quantity per Box
4
Case Quantity
4
  • Overview
  • Product Documents
  • Alternative Solutions

Features

  • Absorptive media pack
  • Designed for minimal pressure drop
  • For inlet and discharge inline air service
  • Corrosive resistant gray powder coat carbon steel (1/2" to 1 1/2" connections)
  • Epoxy coat finish (2" to 4" connections)

Technical Specifications

  • Max. temperature (continuous): 225°F (107°C)
  • Due to the wide range of equipment and environments, please contact factory for typical noise attenuation for your application

Options

  • Flange adapters
  • For additional sizes, contact factory
  • Special connections
  • Hi-temp models

Applications

  • Blowers-Centrifugal
  • Blowers-Regenerative
  • Blowers-Side Channel
  • Vacuum Lifters
  • Vacuum Pump-Regenerative
