Model #

CSL-234P-DN80


Provided for reference only.

Contact us for more info.


Download 2D Drawing Request 3D Model
  • CSL Series Family

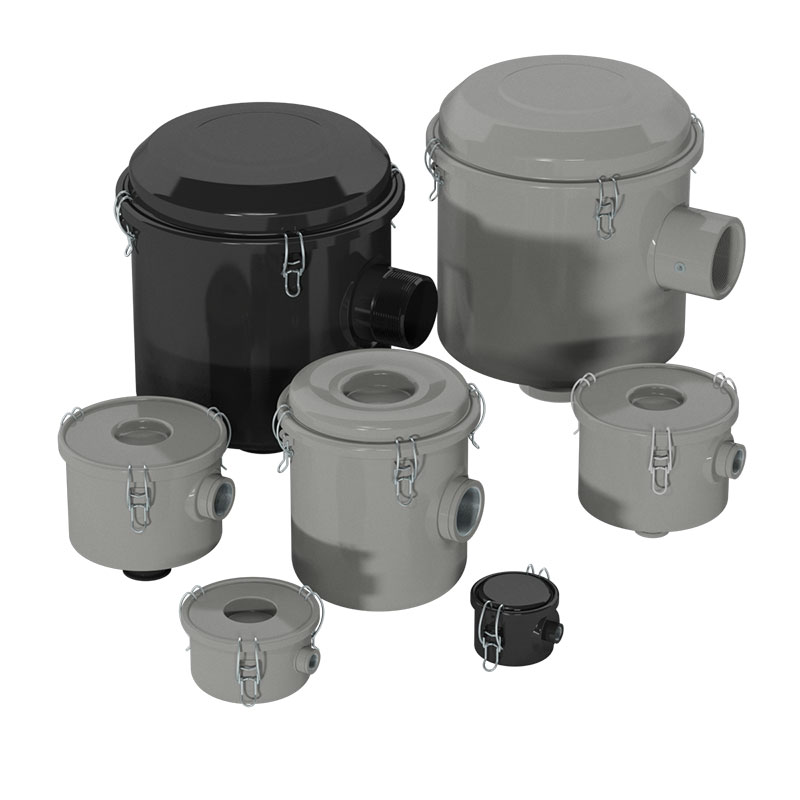

  • CSL Series Family Small
OVERVIEW, DOCUMENTS, AND MORE
LOADING

Specifications

Model
CSL-234P-DN80
Inlet Connection Size (in.)
DN80
Outlet Connection Size (in.)
DN80
Connection Type
PN10 FLG Pattern
Flow (m3/hr)
510
Dim A (mm)
689
Dim B (mm)
229
Dim C (mm)
305
Dim D (mm)
470
Dim E (mm)
254
Weight (kg)
21.31
Media
Paper
Micron Rating
2.0
Finish
Black Powder
Quantity per Box
1
Case Quantity
1
Replacement Element
234P™
  • Overview
  • Product Documents
  • Alternative Solutions

Features

3/8" - 4" Connections:

  • Seamless drawn housings
  • O‐ring seal
  • Corrosive resistant powder coat carbon steel
  • Stainless steel torsion clips

3" - 12" Connections:

  • Heavy duty T bolts for easy maintenance
  • Corrosive resistant black powder coat carbon steel
  • O-ring stays in place with unique U-channel groove
  • Inlet & outlet 1/4” gauge taps (on select models)

Technical Specifications

  • Vacuum Rating: medium vacuum service
  • Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)
  • Filter change out differential: 15-20"H2O (37‐50 mbar) over initial Δ P
  • Polyester: 99%+ removal efficiency standard to 5 micron
  • Paper: 99%+ removal efficiency standard to 2 micron



Options

All Sizes:

  • Vacuum gauge
  • Straight-through configurations
  • Various filter media
  • Various finishes and connection styles
  • Stainless steel



3/8" - 4" Connections: ​

  • Stainless steel (select models)
  • ISO Flange (contact factory for specs, sizes & availability)
  • Mounting housing bands
  • Alternative top‐to‐canister fastening system for low pressure or pulsating systems



3" - 4" Connections: ​

  • Differential inlet/outlet gauge taps
  • Integrated baffle (3" - 4" connections)
  • Support brackets



3" - 12" Connections:

  • ISO Flange (contact factory for specs, sizes & availability)
  • Flange faces free of paint
  • Internal surfaces free of paint
  • Lifting lugs
  • Brackets for optional support legs
  • Nameplate bracket

Applications

  • Vacuum Packaging
  • Vacuum Lifters
  • Blowers-Side Channel
  • Soil Venting/Remediation
  • Factory Automation
  • Woodworking
  • Blowers-Side Channel
  • Ash Handling
  • Cement
  • Compressor-Piston
  • Compressor-Screw
