Model #

EFS-05-038/1


$62.00 / each

Please order in case or box quantities.
A $100.00 net minimum order is required. Thank you.

Provided for reference only.

Contact us for more info.


Request 2D Drawing Request 3D Model
  • EFS Family

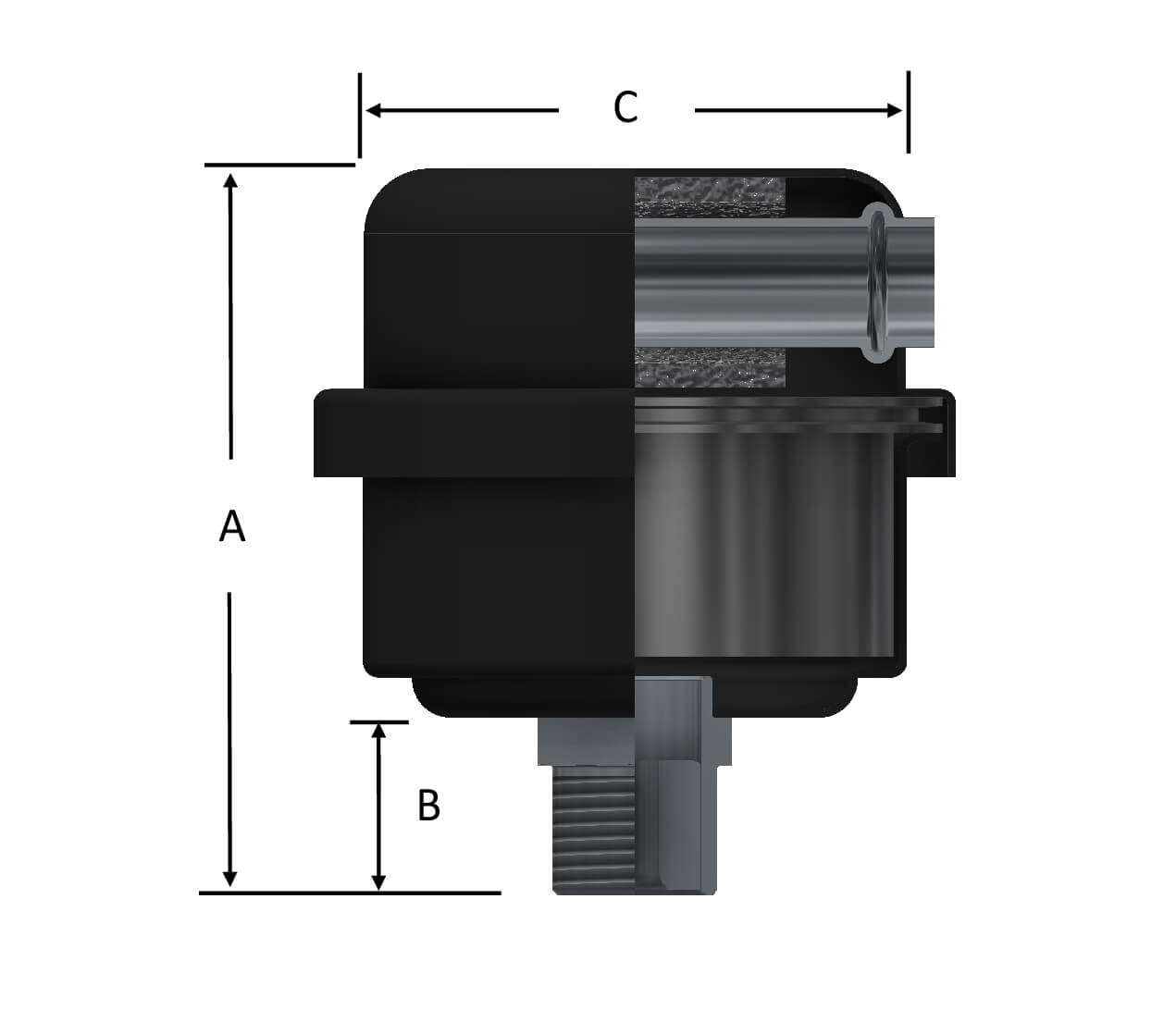

  • EFS Diagram
EFS Family
OVERVIEW, DOCUMENTS, AND MORE
LOADING
Units

Specifications

Model
EFS-05-038/1
Inlet Connection Size (in.)
.38
Connection Type
MPT
Flow (SCFM)
2
Dim A (in.)
2.75
Dim B (in.)
0.63
Dim C (in.)
2.50
Weight (lbs.)
0.50
Media
Polyester
Micron Rating
10.0
Finish
Black Powder
Quantity per Box
1
Case Quantity
12
Replacement Element
05™
Model
EFS-05-038/1
Inlet Connection Size (in.)
.38
Connection Type
MPT
Flow (m3/hr)
4
Dim A (mm)
70.00
Dim B (mm)
17.00
Dim C (mm)
64.00
Weight (kg)
0.22
Media
Polyester
Micron Rating
10.0
Finish
Black Powder
Quantity per Box
1
Case Quantity
12
Replacement Element
05™
  • Overview
  • Product Documents

Features

  • Compact design combines both filtration efficiency and noise reduction
  • Integrated inlet diffuser optimizes sound attenuation
  • Multi-stage noise reducing features including final stage sound absorbent insert
  • Tubular silencing design - tube is positioned to maximize attenuation and air flow while minimizing pressure drop
  • Patented high grade element with built-in Butterfly gasket seal which creates positive seal between housing hemispheres and a new seal with each element
  • Seamless drawn housings
  • Corrosive resistant black powder coat carbon steel
  • Ability to mount vertically, horizontally

Technical Specifications

  • Polyester: 99%+ removal efficiency to 25 micron
  • Temp (continuous): min -15°F (-26°C) max 220°F (104°C)

Options

  • Over pressure relief valve
  • Zinc clear plated finish
  • HEPA filter media (99.97% efficient @ 0.3 microns)
  • Custom inlet connections to match pump discharge
  • Straight-through versions to remote pipe exhaust

Applications

  • Dry Scroll Pumps
  • Prevent tip seal dust and debris from contaminating the environment
  • Silence irritating pump exhaust noise
