Power Generation  /  Advanced Closed Crankcase Ventilation  /  ACV Series: Closed Crankcase Ventilation Filters  /
Model #

ACV0712D(L/R)


$1415.00 / each

Please order in case or box quantities.
A $100.00 net minimum order is required. Thank you.

Provided for reference only.

Contact us for more info.


Request 2D Drawing Request 3D Model

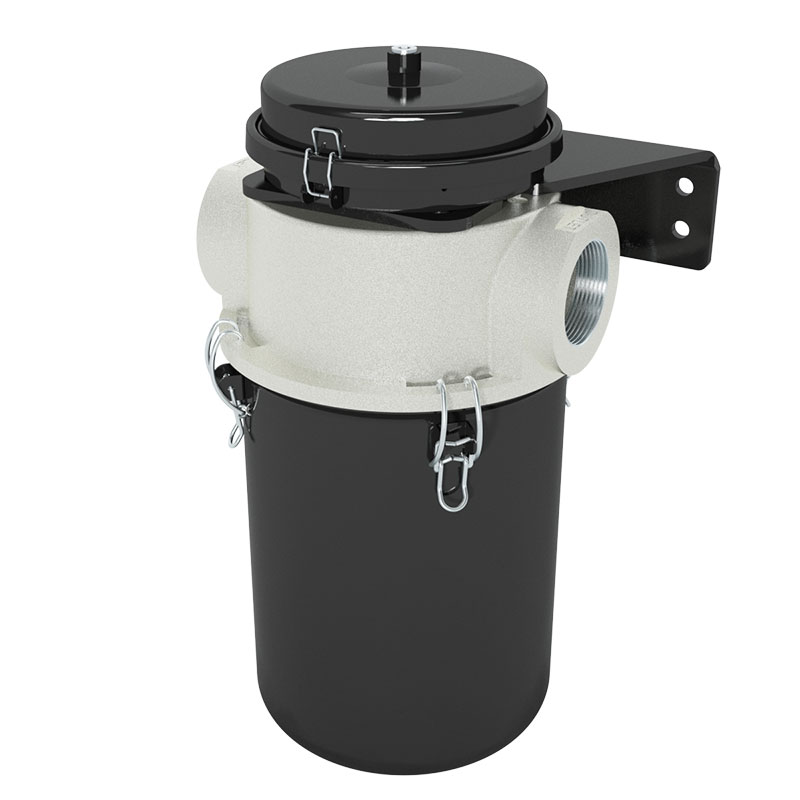

  • ACV Family

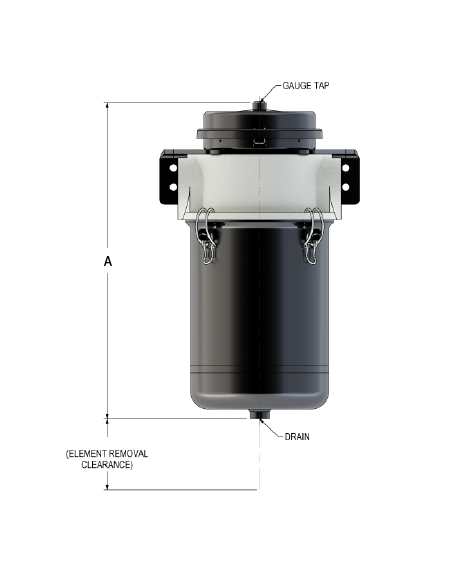

  • ACV Diagram

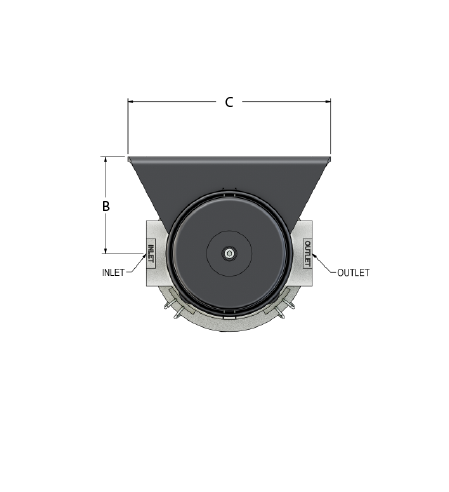

  • ACV top Diagram
OVERVIEW, DOCUMENTS, AND MORE
LOADING
Units

Specifications

Model
ACV0712D(L/R)
Inlet Connection Size (in.)
1
Outlet Connection Size (in.)
1
Connection Type
NPSC
Flow (SCFM)
7
Dim A (in.)
16.6
Dim B (in.)
5.5
Dim C (in.)
4.5
Media
Coalescing
Micron Rating
0.3
Finish
Aluminum/ Black Powder
Quantity per Box
1
Case Quantity
1
Replacement Element
ACV8001-7
Model
ACV0712D(L/R)
Inlet Connection Size (in.)
1
Outlet Connection Size (in.)
1
Connection Type
NPSC
Flow (m3/hr)
12
Dim A (mm)
421
Dim B (mm)
140
Dim C (mm)
114
Media
Coalescing
Micron Rating
0.3
Finish
Aluminum/ Black Powder
Quantity per Box
1
Case Quantity
1
Replacement Element
ACV8001-7
  • Overview
  • Product Documents
  • Case Studies

Features

  • Eliminates visible emissions (99%+ efficient at 0.3 um)
  • High performance coalescing elements offer long life
  • Flow ranges from 2 - 40 CFM (3 - 68 m3/hr) for single units
  • Integrated vacuum control valve controls precise range of vacuum
  • Diaphragm vacuum regulation valve design, no springs - No manual vacuum adjustment required
  • Drain port for oil recovery
  • Universal mounting bracket
  • Available with installation kits
  • Optional atmospheric bypass

Applications

  • Prime Power Engines
    Standby Generators
    Emergency Generators
    Marine Engines
    Gas Engines
    Diesel Engines
    Dual Fuel Engines
    Biogas/Digester Gas Engines
    CHP Applications
    Hydrogen Engines
ACV Brochure
ACV Brochure
ACV Brochure (metric)
ACV Brochure (metric)

Crankcase Ventilation for CHP Engines G3512E

Crankcase Ventilation Marine Diesel Engine: JD 6068 TFM76

Crankcase Ventilation Retrofit Diesel Marine Engines JD4045

Natural Gas Engines Water Treatment Facility G3520C

Standby Power Engines for Data Center C175-16
